Current location: Home > Products > Auto Welding Machine

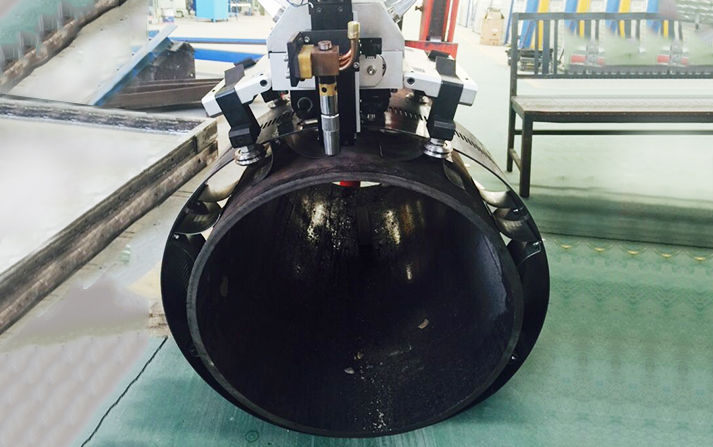

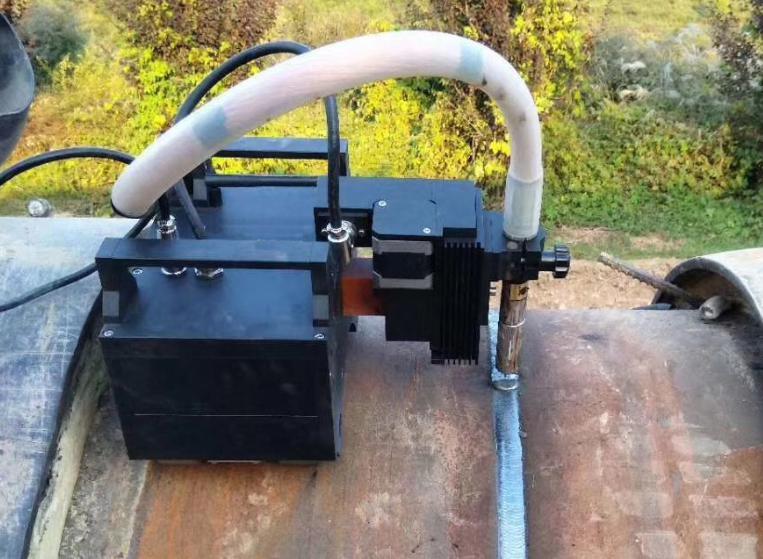

KHGB Auto Pipe welder
KHGB Automatic welding of pipes in all positions by fixing the workpiece (tube) and welding the carriage around the workpiece.

Application:

Boiler, heat exchanger, pharmaceutical, chemical, food machinery, engineering installation, industrial pipeline, biological engineering, refrigeration engineering, electronic equipment, instrumentation ships, military industry, nuclear power, etc.

Parameter:

The automatic welding machine of complete position of the pipe is composed of four parts: welding power supply with gas protection, wire feed mechanism with gas protection, magnetic welding cart and welding control system
Advantage
1.High efficiency

Pipe line in all positions of the automatic welding machine, making a great advance of the limitation of the orbit, saving the cost of installation of the orbit and the consumption of time.

2.Automatic welding

The use of automatic welding instead of manual welding, which is 3 times faster than traditional manual welding, greatly improved not only the welding efficiency, but also the quality of the welding, also saving labor costs.

3.High accuracy rate

The qualified welding inspection rate of more than 98%, will guarantee the quality of the welding.

4.High cost performance

Achieved a technological innovation without orbit, high quality, low price, highly profitable.














Welding power source

Finland Kemppi welding power supply, Welding carbon dioxide protection

Welding control system

Products The company's patented technology products, digital remote control.

You can perform the control of the movement of the welding cart, the debugging of the welding gun up and down, the purging of the left and right welding gun, the turning of the welding gun to the left and right, the welding gun delay to the left and right, the voltage of the welding current, etc.

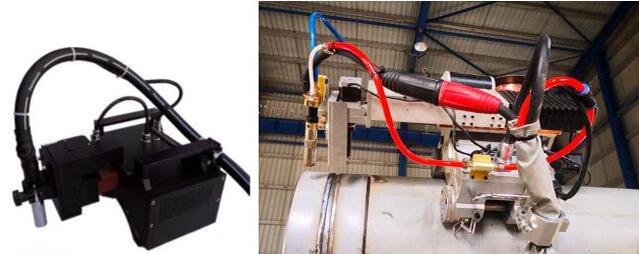

Structure

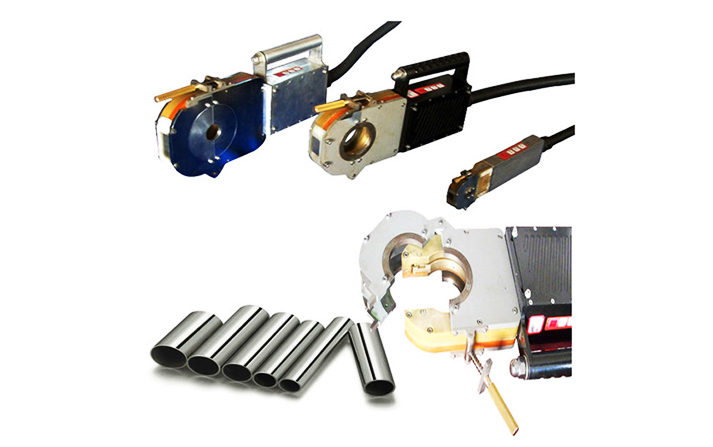

Other Type Orbital Tube Welding Machine



Parameter
1.Applicable pipe diameter: Ø5 "and Ø118"

2.Thickness of the pipe: 4-50mm 3.Material: Carbon Steel Pipe,

4.Applicable solder: butt welds of several pipe segments, such as pipe solder, pipe elbow weld, etc.

5.Magnetic welding wheel DC servo motor drive
Suc Aspiration of the wheel: 80 kg Speed Movement speed: 50-750 mm / min, continuous speed regulation
