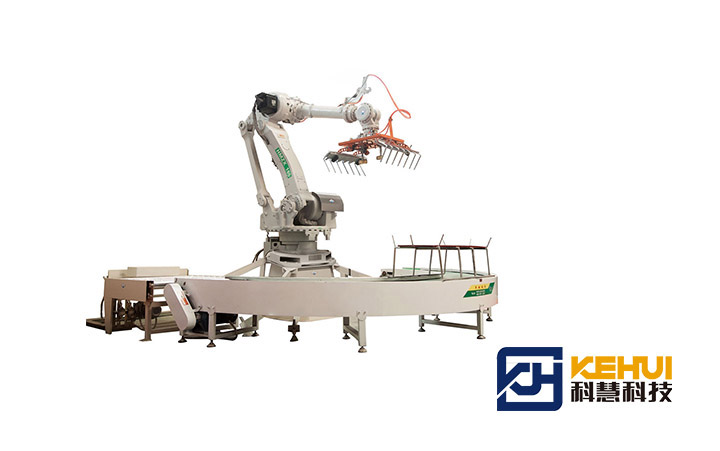

Palletizing Robot
The KH series palletizing robot system adopts 4-axis design, which has the advantages of compact structure, good versatility, fast running speed, low failure rate, convenient operation, low energy consumption and small f

Application:

Industries of machinery manufacturing, food, feed, medicine, chemical, fertilizer, cement, glass, friction materials, refractory materials, steel, building materials, environmental protection and etc.

Parameter:

Advantage
1.Simple structure with a few parts:
Low failure rate of components, reliable performance, simple maintenance, and small required inventory parts.
2.Small footprint and high efficiency:
It can be set in a narrow space and be effectively used, it is beneficial to the layout of the production line in the customer's factory, leaving a large warehouse area.
3.Good versatility, flexible integration and production:
When the size, volume, shape and shape of the customer's product changing, only need to modify it on the touch screen without affecting the normal production.
4.High precision, low energy consumption:
With excellent trajectory accuracy and repeatability, the power of the transporter is around 26KW, while the power of the transport robot is about 5KW, greatly reducing the operating costs.
5.Simple operation and strong versatility:
Each process can be optimized for customization with a large inertia, high torque upper arm extender and various wrist modules. The scope of work is large and can be easily installed in equipment-intensive production lines. All controls can be operated on the control cabinet screen, and the operation is very simple. Just locate the starting point and the placement point, and the teaching method is simple and easy to understand.

Structure
Kehui robot palletizing system:
KH-S series small robot palletizing system
Features: wrist rated load 3Kg, payload 5Kg, effective working radius is 700mm.
KH-N series robot palletizing system
Features: Lightweight structure, effective load of 50Kg, effective working radius of 2110mm.

Commonly palletizing robots mainly includes:
Pinch type mechanical gripper: mainly used for high speed code bags
Plywood type mechanical claws: mainly suitable for box code
Vacuum suction type mechanical gripper: mainly suitable for suckable stacking objects
Hybrid gripping robot gripper: mainly suitable for pick-and-place pallets
Hybrid gripping robot gripper: suitable for coordinated pick and place of several stations

Parameter
The robotic palletizing system includes industrial robots, controllers, programmers, robotic grippers, automatic disassembling/stacking machines, pallet transport and positioning equipment, and handling mode software.

Video

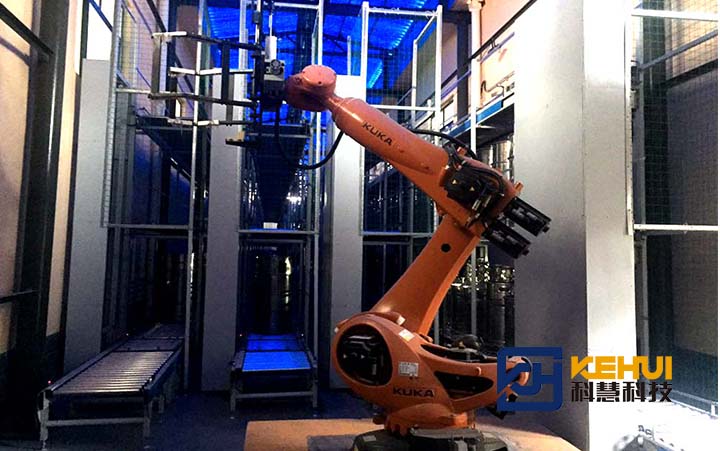

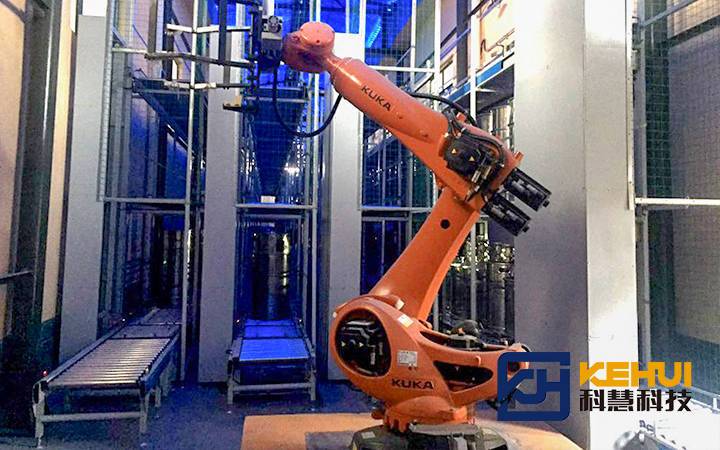

Cases
