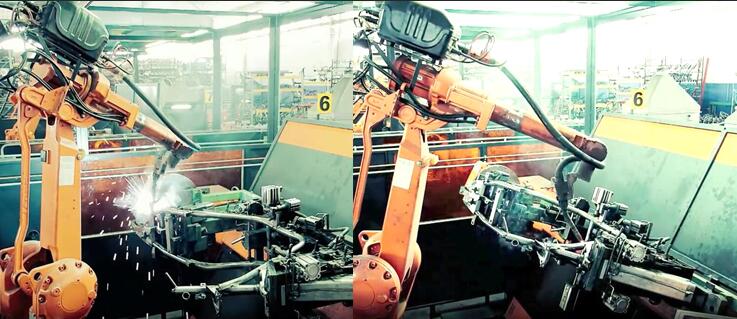

Motorcycle Frame Robot Welding station
the welding station is designed to do motorcycle scooter frame welding automatically. high efficiency, qualified welding beam and beautiful outlook.
It is made of the welding robot system, welding fixture and jigs,and controlling system.
We supply SKD chassis parts if your demand over 1000sets.

Application:

motorcycle fabrication plant; scooter chassis plant; bike frame chassis plant; triwheel frame plant.

Parameter:

Welding speed: 500~ 800mm/min;
positional repeatability of robot: ±0.1mm;
positional repeatability of positioner: ±0.3mm.
info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage

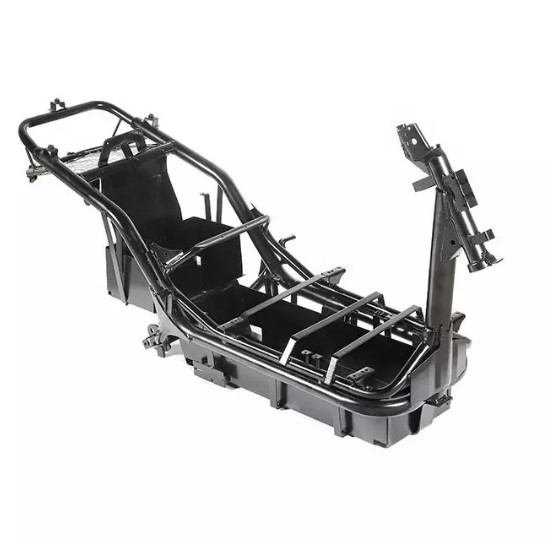

  1. High quality chassis products.
          A. chassis parts precise assembly guaranteed by welding fixture, designed and processed according as 3D drawing designed from chassis.
          B. high quality and beautiful welding beam.  Robotic programming welding avoid labor welding mistake.

  1. High welding efficiency    manual welding can not work continuously and steadily. Robotic auto welding efficiency usually is about 100% higher than manual welding.

  1. High qualified products rate   the repeat long time work causes labor exhausted and welding mistake, robot welding is designed to such repeat long time time.





















Structure

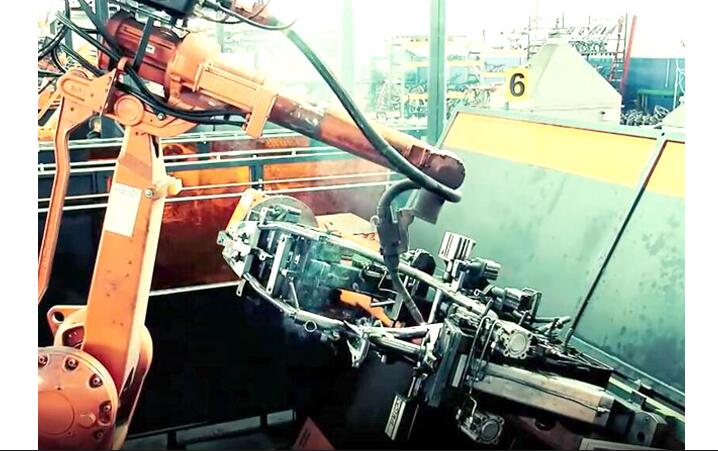

The motorcycle frame robot welding station realizes the max.system efficiency with layout of one worker-3 stations design. Worker can load fixtures and unload workpieces at the other station while one station is welding.

Parameter
No. Items Parameters
1 Size of workpiece Can be designed according to size of workpieces
2 Weight of workpiece Can be designed according to requirement
3 Welding speed Normally 5～50mm/s, can be set by weld size
4 Positional repeatability of robot ±0.1mm
5 Positional repeatability of moving structure ±0.15mm
6 Positional repeatability of positioner ±0.3
