Steel Structure Welding Robot WorkStation

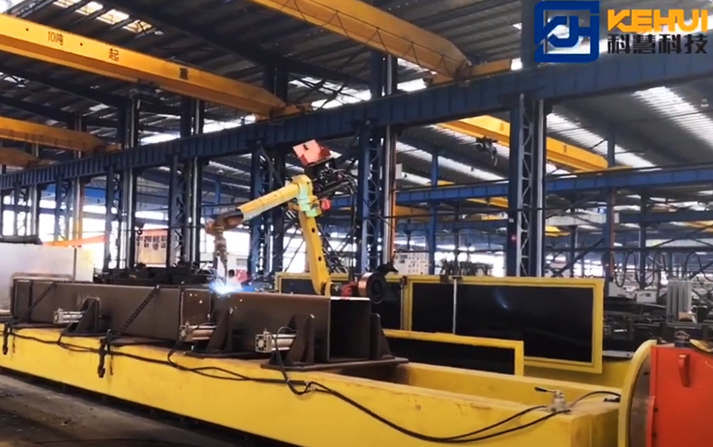

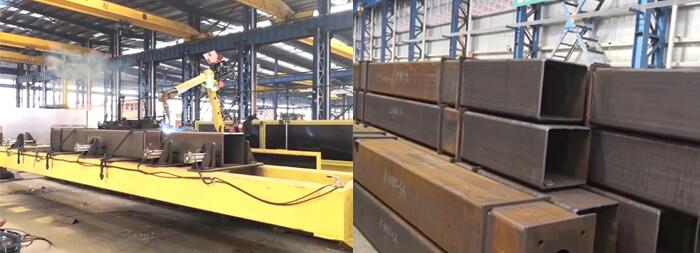

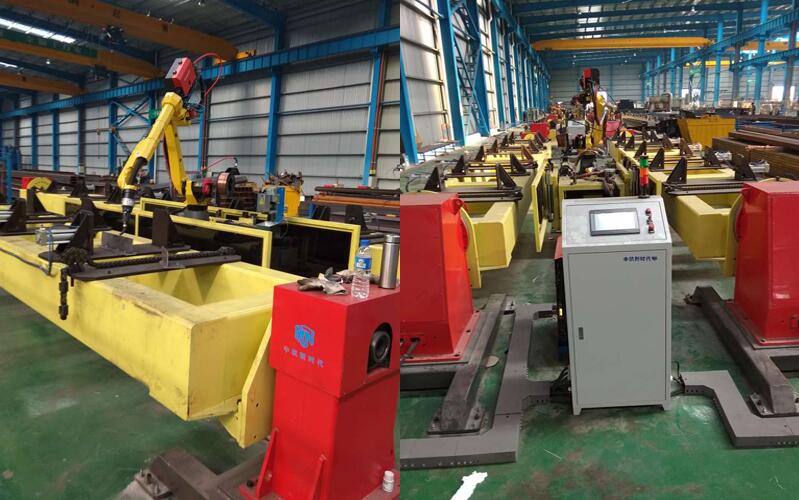

The structural steel robot welding station adopts single-machine double-station layout. It consists of a robot walking system and a positioner. The robot walking system enables robot motion on a specific route. Two softwares are designed: weld seam locating and spot weld tracking. They contribute for a high efficiency automated welding system.

Application:

Welding of structural steel in bridge, building, engineering machinery industries, etc.

Parameter:

Applicatioin material: Carbon steel, stainless steel, aluminum alloy, etc. Workpiece size: Custom Welding speed: 5～50mm/s Weld seam width: 0.5～15mm Robot wingspan: 2028mm Slideway length: 9m
info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage
  1. Precise robot repeat motion, forms high quality of beautiful weld seams.
  2. Custom fixtures and mechanisms, great application adaptability.
  3. Servo motor driven, has large effective weld radius.
  4. Systematic weld control system, has great quality of weld posture.
  5. Turnkey projects available , 24hr technical service.



Structure
Auxiliary system configuration (standard configuration):
High precision transmission system - including robot walking system, servo positioner system
Torch cleaning and wire cutting system - including torch cleaning station, wire cutting device and silicone oil spraying unit.




















Automatic wire feeding system - automatic wire feeder, matched welding wire, wire feeding bracket, wire feeding barrel (plate).
Electronic control system - regular control, PLC control, DCS control, external controller.
Safety protection system - safety light barrier, safety fence, arc screen.
Parameter
No. Item Parameter
1 Workpiece size Customized
2 Welding speed Usually 5~50mm/s, chosen based on size of weld seam
3 Robot slideway legth 9m
4 Servo positioner length ±0.1mm
5 Robot repeatability
6 Robot controlled axes 6
7 Robot wingspan 2028mm
8 Robot payload at wrist 8kg
9 Slideway repeatability ±0.15mm
10 Positioner repeatability ±0.3mm
11 Environment temp. range -10℃～+45℃
12 Relative humidity ≤90%, no condensation
13 Power AC380V 10%, 50Hz ± 1Hz
