KHGT pipe to pipe butt welding machine

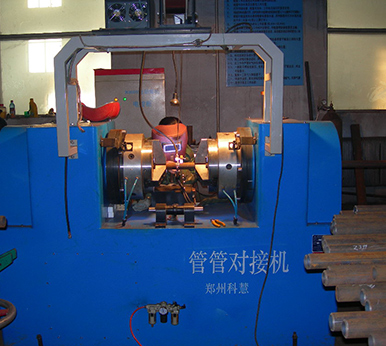

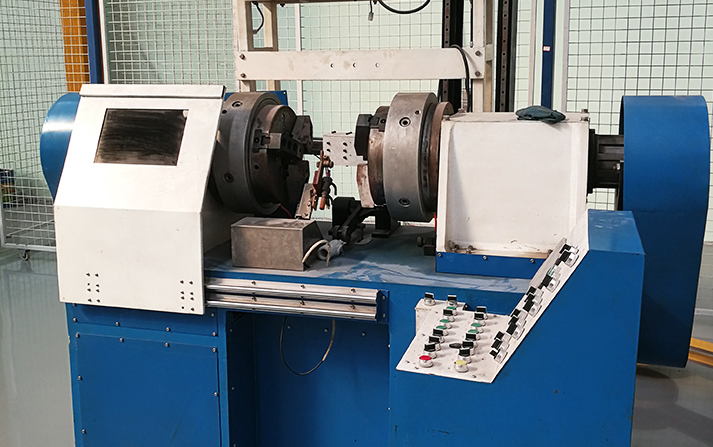

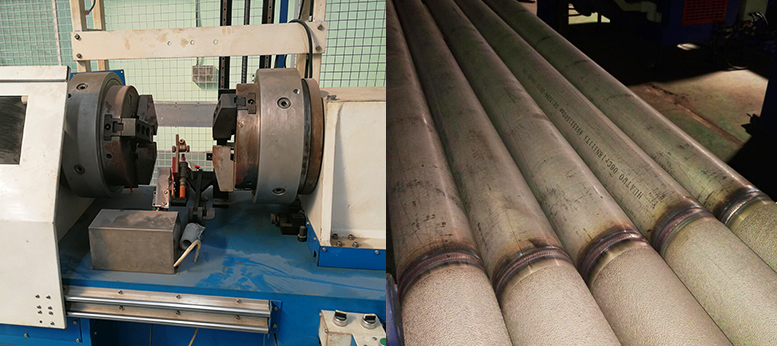

KHGT desktop type automatic orbital welding machine is specialized for straight tube butt welding work with or without wire filling automatically(pipeline fabrication, pipeline producing). According to different needs, can be used for tube to tube, tube to sealing cap, tube to flange, and so on, according to the different thickness requirements, we can use different ways, such as cold welding wire, hot wire TIG welding TIG welding or TIG welding way. + MIG.

Application:

Petrochemical, boiler, refrigeration, medicine, aviation, pressure vessel, ship, food machinery, atomic energy, etc.

Advantage

Suitable tube sizes: Normally 19 - 80mm
Suitable material: carbon steel, stainless steel, alloy steel, and so on.
KHGT have OSC/AVC functions - with oscillation OSC and arc voltage control AVC.
KHGT could solve the issue of operator error in gas tungsten arc welding(GTAW/TIG).
KHGT is composed of the power supply,control system,cooling system, wire feeding system, and the welding head working station.

KHGT can rotate freely infinite at any angle of 360°.

KHGT is widely adopted in pipeline fabrication, pipeline producing.
Driving and wire adopts reliable stepping motors.
Suitable for various kinds of pipe - pipe joint way, and various groove form
Starting main components are used aviation materials, light weight, size stability, and high temperature deformation
24 hours continuous welding- Welding torch using forced circulation water cooling, can work long hours. Mandatory water cooling system, equipped with 16 liters stainless steel water tank, not affected by field water hydraulic conditions of limits, cooling fully, reliable convenient.
Intelligent welding- PLC control system and LCD touch human-machine interface, can be stored up to 100 groups of welding programs, each group of welding scope can divide 1-2 section, input is simple, do not need professional basis and specialized welding knowledge.
Using Panasonic IGBT inverter control DC pulse arc welder, high efficiency, arc welding strong stability, finished weld seam have a beautiful and strong effects.

Parameter

Welding head working station

Model	KHGT-T-C-80	KHGT-T-H-80	KHGT-T-M-80
Welding method	cold wire TIG	hot wire TIG(as option)	TIG+MIG(as option)
Tube diameter	19-80mm	19-80mm	19-80mm
Normal tube thickness	1.5-8mm	1.5-15mm	3-15mm
Welding speed	0.1-5rpm 80-150mm/min	0.1-5rpm 250-400mm/min	0.1-5rp 250-400mm/min
Wire feeding speed	0-3000mm/min	0-8000mm/min	TIG:0-3000mm/min MIG:0-15000 mm/min
Wire diameter	0.8,1.0,1.2mm	0.8,1.0,1.2mm	0.8,1.0,1.2mm
Adjustable angle	＜90°	＜90°	＜90°

Swinging function

Biggest swing range	10mm	10mm	10mm
Swing speeds	0.5-10mm/s	0.5-10mm/s	0.5-10mm/s
Around retention time	0.1-10s	0.1-10s	0.1-10s
Swing frequency	0-5HZ	0-5HZ	0-5HZ

Automatic arc length control

Arc length adjustment speed

2.5mm/s

Power source and control system

Rated input voltage	380V±10% 3 phases, 50/60Hz
Rated input capacity	13.9KVA
Rated power input	13.2kw
Voltage allows range	±10%
Load sustained rate	400A 60%
Load sustained rate	250A 100%
Rated load voltage	25V
Rated voltage no-load	70V
Welding current adjusting range	4-400A
Current rise time	0.1-25S
Preheating time	0.1-25S
Current decrease time	0.1-25S
Pulse frequency	0.5-500HZ
Argon gas flow	8-12L/min
Built-in memory space	100 groups of welding programs
Each set can be segmented number	1-12 section
Cooling voltage	1.2kgf/mm
