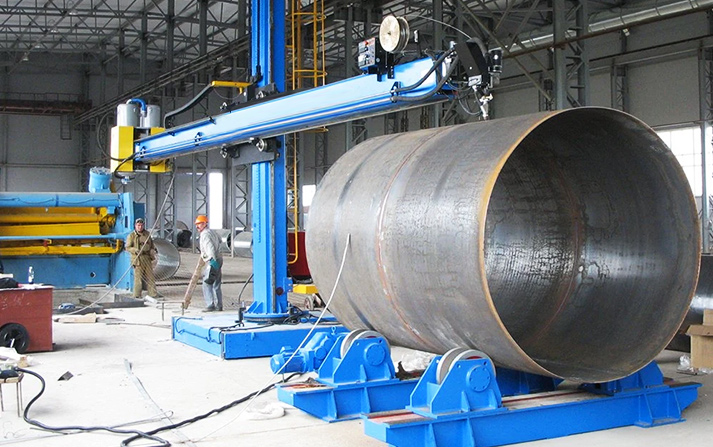

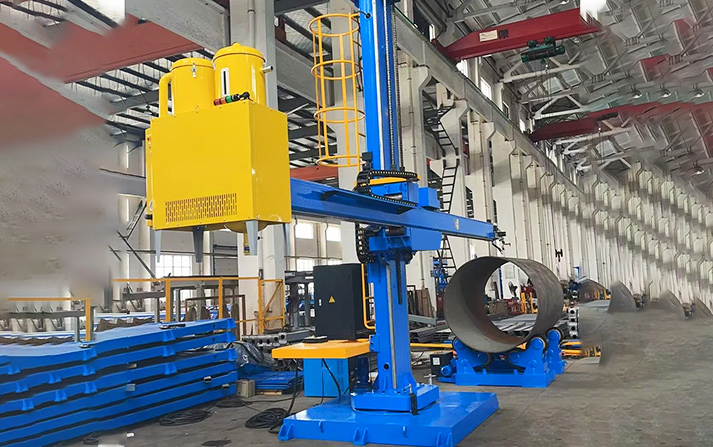

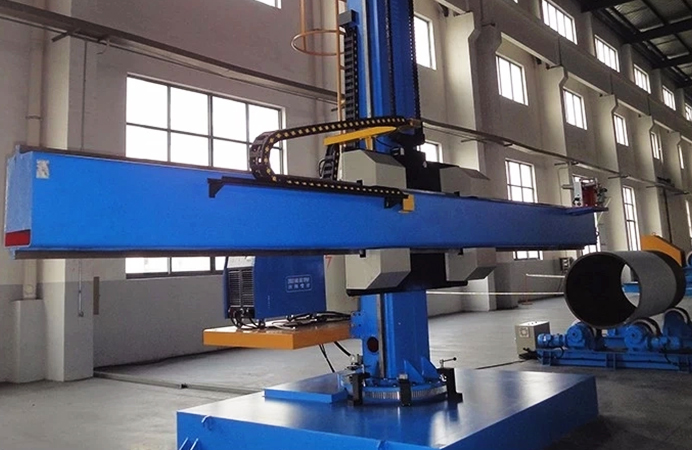

Automatic Girth Welder Orbital Tube Welding Manipulator
This Automatic Orbital Tube Welding Manipulator is suitable for welding pipes of different diameters, materials and types, including steel pipes, stainless steel pipes, copper pipes, etc. Whether welding straight pipes, elbow pipes or branch pipes, high-precision welding can be achieved.

Application:

It is widely used in welding of oil pipelines, natural gas pipelines, chemical pipelines, HVAC pipelines and other industries in petroleum, chemical industry, heating, water supply, gas supply and other industries.

Parameter:

info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage



Structure
Parameter
Type Heavy-duty Middle-duty Light-duty
8*6 5*6 4*5 3.5*5  3*4 2*2
Effective stroke of vertical boom-mm 8000 5000 4000 3500 3000 2000
Effective stroke of cross boom-mm 6000 6000 5000 5000 4000 2000
Suitable diameter of cylinder-mm 1000-8000 1000-5000 1000-4000 700-3500 700-3000 500-2000
Rotating angle of the vertical boom ±180° ±180° ±180° ±180° ±180° ±180°(by manual)
Up and down speed of cross boom-m/min 0.9 1 1 1 1 0.3
Expansion speed of cross boom-m/min 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2
Forward and backward speed of the trolley-m/min 1.5 1.5 1.5 1.5 1.5 1.5
The center distance of the trolley track-mm 2308 1780 1780 1780 1500 900
