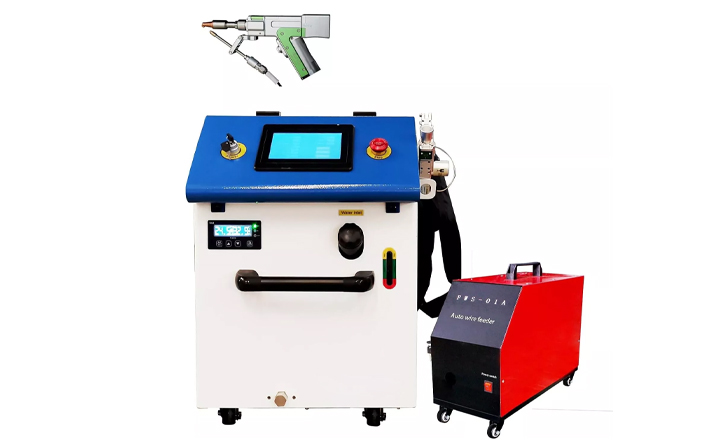

Handheld 4 in 1 Laser Welding Machine And Cutting Machine
This handheld 4 in 1 laser welding machine is equipped with a dedicated welding/cutting/cleaning nozzle, dual oscillation, welding length up to 8 mm, welding speed is 4 times that of TIG and MIG, with 7 oscillation modes, more fault tolerance than single oscillation. In addition, this 4 in 1 laser welding machine specially designed weld cleaning nozzles to create visually appealing welds while eliminating the need for post-polishing.

Application:

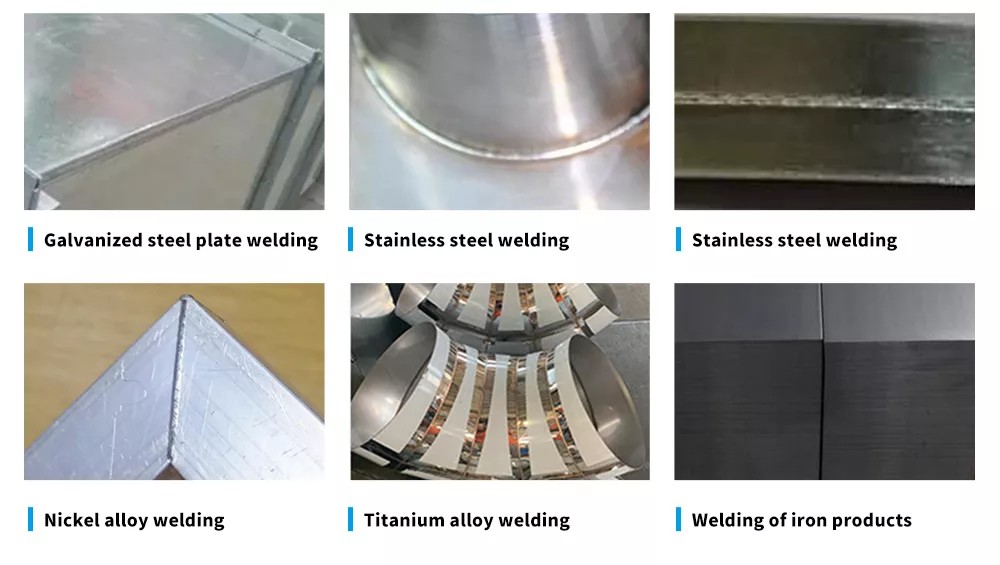

This 4 in 1 laser welding machine is suitable for welding, cutting, cleaning of metal materials such as stainless steel, aluminum alloy, carbon steel, etc.

Parameter:

info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage
Raycus Laser
Compared with traditional lasers, 100000+ hour fiber lasers are more stable, energy-efficient and maintenance-free.

NOUALASER full touch screen operation interface
Supports 24 languages ​​including English and Spanish. The working status is clear at a glance.

S&A water-cooling machine
Water cooling has a longer continuous working time than air cooling and can work all day.
Structure
Application:
Parameter
Wobble Mode

Single Wobble

Double Wobble
Laser Source Raycus Raycus

Chiller

 S&A S&A
Input Voltage 1000W/1500W/2000W (220V 50/60Hz single-phase)/3000W (380V three-phase) 1000W/1500W/2000W (220V 50/60Hz single-phase)/3000W (380V three-phase)
Weld Width 0.1~5mm 0.1~8mm
Cutting Thickness ≤3mm ≤3mm
Cleaning Width 110mm 100mm
Weld Seam Cleaning Width 12mm 12mm
Welding Shape 1 welding shape 7 different welding shapes
Cleaning Shape 1 cleaning shape 6 different cleaning shapes
Supported Languages Supports 26 languages, including Spanish, English, German, etc. Supports 24 languages, including Spanish, English, German, etc.
Laser Wavelength 1080±10nm 1080±10nm
Visual Positioning Red Dot Red Dot
Max Modulation Frequency 20kHz 20kHz
Laser Type Continouous/Modulation Continouous/Modulation
Video

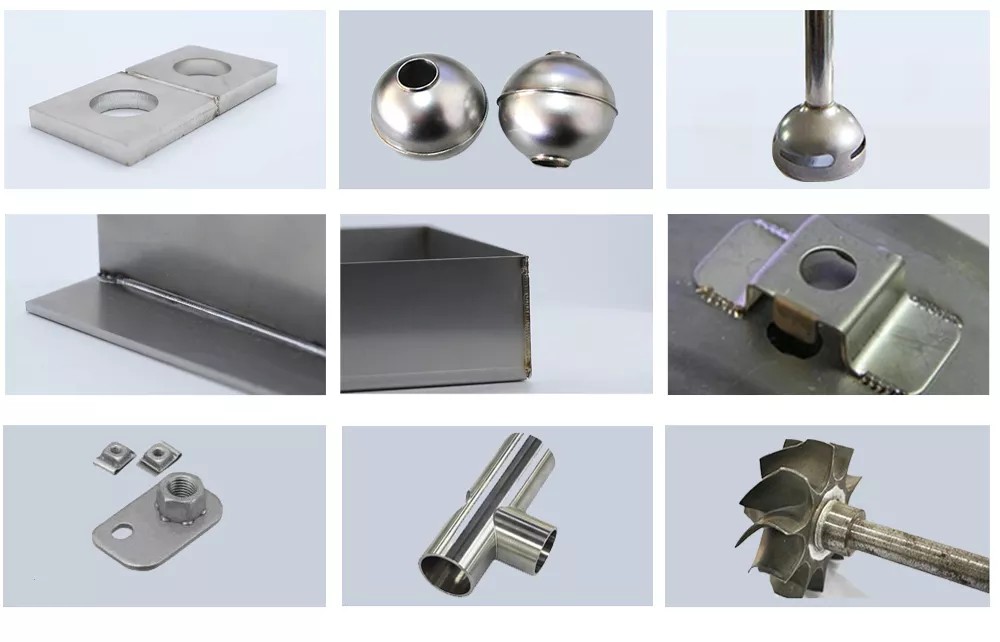

Cases
