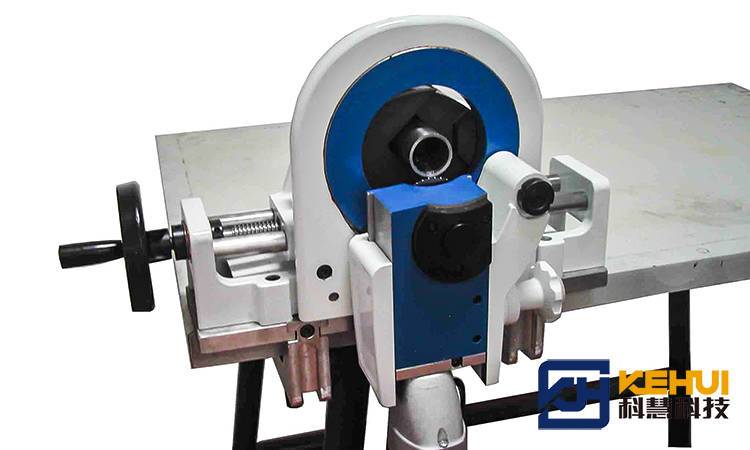

Semi-automatic Portable Pipe Cutting Machine
The pipe cutting machine is driven by original German Taibao motor to ensure motor performance. It is easy to operate with small footprint.

Application:

It can be used for direct welding after pipe cutting in industries such as semiconductor, electronic equipment, beer, pharmaceutical, biotechnology, beverage, dairy, chemical industry, water treatment, etc.

Parameter:

Motor power: 1020W
Blade speed: 30-160RPM
Weight: XZ4.0 - 31kg, XZ6.0 - 34kg; size: XZ4.0 - 570*320*390mm(L×W×H), XZ6.0 - 600*330*410mm(L×W×H).
Advantage
1. Original German metabo motor driven with easy operation and small occupation.

2. Portable, suitable for diversified project requirement.

3. Non-deformation fixtures used, suits for thin wall pipes, especially S/S pipes.

4. Mechanical cold saw-cutting method without destroying the pipe material, extra machining, also avoiding corrosion.

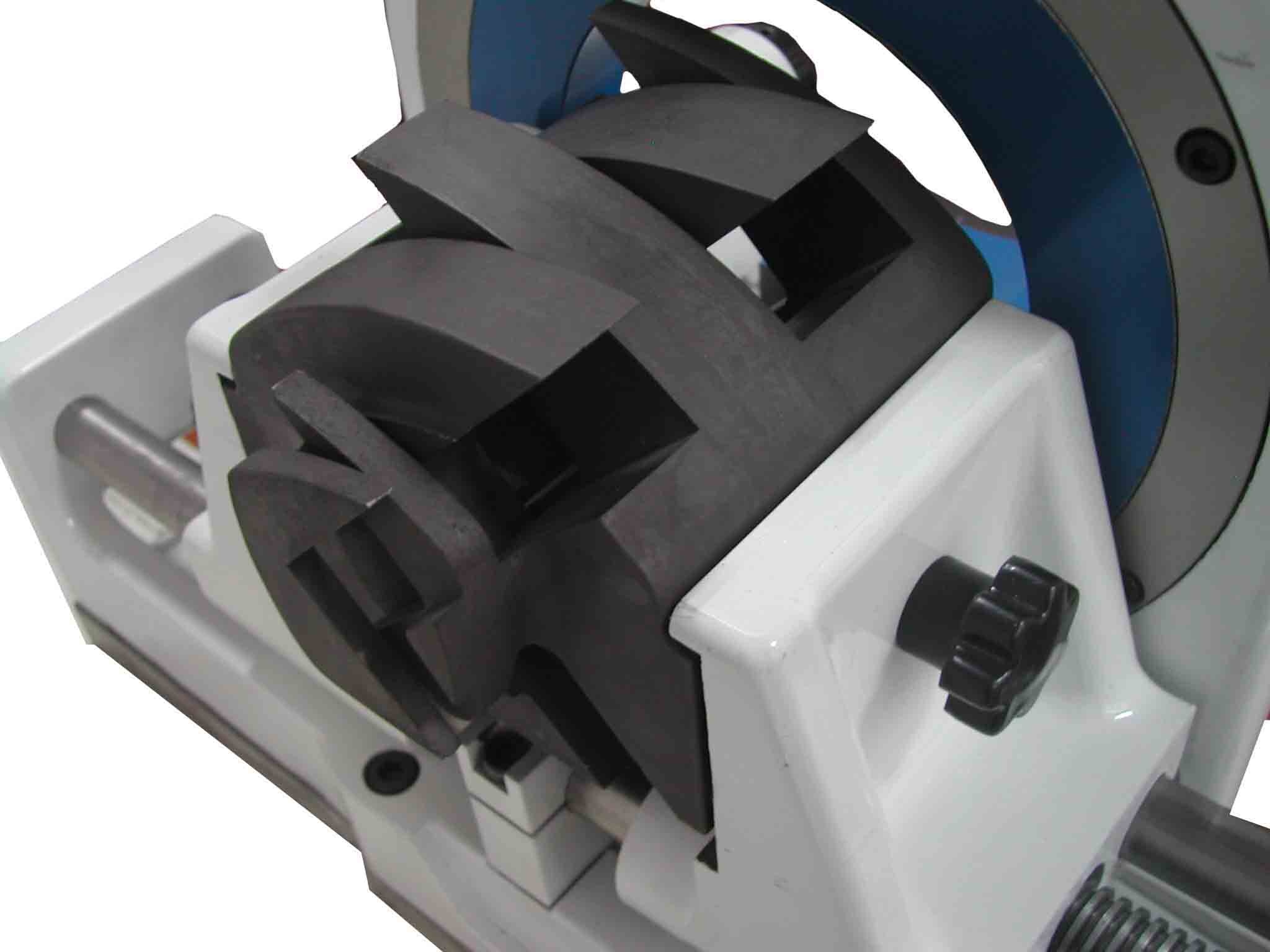

5. Multi-points pipe fixing device, rapid adjustment depending on pipe size.

6. Neatly pipe end without burr and deformation, which suits for welding requirement without wire feeding.
Structure
Parameter

 Model Unit Xz4.0 Xz6.0
Cutting Range mm 6-120 50-170
Inch 0.236-4.724 1.969-6.69
Effective Cutting Wall Thickness mm 3.0 3.0
Inch 0.098 0.098
Motor Rate W 1020 1020
Motor Voltage

1 phase AC Metabo
Motor,110/220V,50/60HZ
1 phase AC Metabo
Motor,110/220V,50/60HZ
Blade Speed RPM 30-160
When the pipe diameter is large,
the speed should be reduced accordingly.
30-160
When the pipe diameter is large,
the speed should be reduced accordingly.
Length x Width x Height mm 570*320*390 600*330*410
Net Weight Kg 22Kg 24Kg
Gross Weight Kg 31Kg 34Kg
Adaptation

Plastic pipe (PE, PP, PVDE, PVC)
stainless steel pipe
Cast iron pipe
Ordinary structural steel pipe
Galvanized tube
Aluminum tube
Plastic pipe (PE, PP, PVDE, PVC)
stainless steel pipe
Cast iron pipe
Ordinary structural steel pipe
Galvanized tube
Aluminum tube
