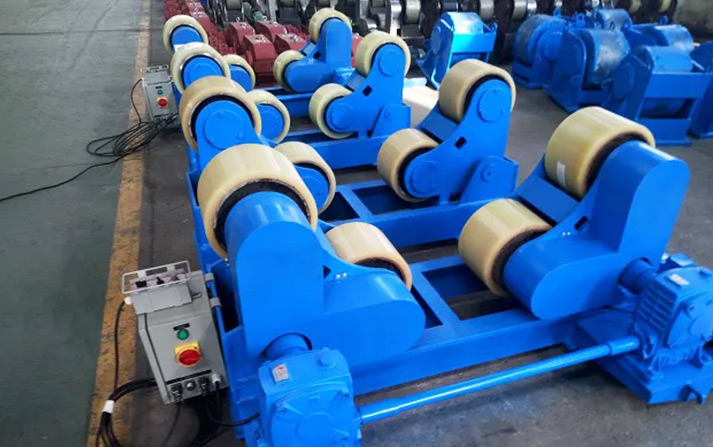

Welding Rotator For Tank Welding
The welding rotator is a commonly used welding auxiliary device that is widely used in the welding production process. It mainly uses the friction between the weldment and the driving roller to drive the rotation of the cylindrical weldment. The combination of welding rotator, welding manipulator and welding positioner can realize automatic welding of internal and external circumferential seams, fillet welds and internal and external longitudinal seams of the tank.

Application:

Parameter:

info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage

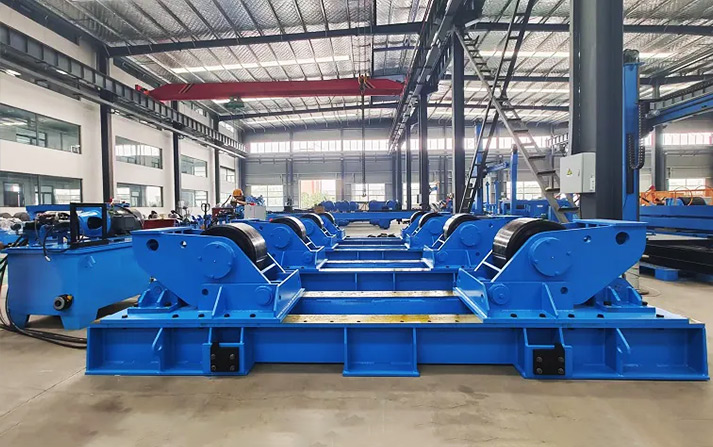

Two standard models of turning rolls:
 *  Conventional adjustable type
 *  Self-Aligning type

FEATURES AT A GLANCE：
 *  Mainly used for fit-up welding
 *  Roller distance could be changed by hydraulic cylinders to meet requirement of work pieces with different Diameter
 *  Work piece could be moved up & down, left & right
 *  Polyurethane wheels are much more durable
 *  Frequency speed control is applied for the adjustment of roller speed
 *  Loading capacity: from 1T- 200 Ton
 *  Roller speed: 65 mm/min to 1500 mm/min

Structure
Parameter
Model Load (T) Wheel Diameter (mm) Wheel Width (mm) Workpiece Diameter (mm)
BKT-5T 5 260 120 200-2000
BKT-10T 10 310 120 200-2500
BKT-20T 20 310 170 300-3000
BKT-30T 30 310 220 300-3500
BKT-40T 40 425 220 300-4000
BKT-50T 50 425 220 400-5000
BKT-60T 60 425 220 600-5000
BKT-80T 80 425 240 800-5500
BKT-100T 100 550 240 100-6000
BKT-150T 150 550 240 1100-7000
BKT-200T 200 600 260 1200-7800
Video

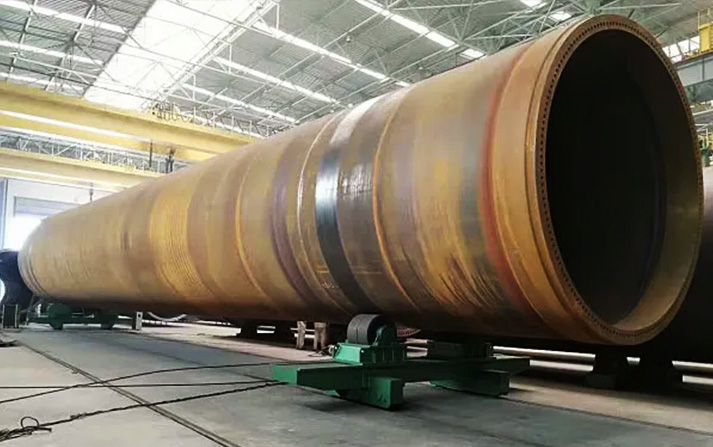

Cases
