This automatic girth welder is suitable for pipe-to-pipe, pipe-to-elbow, pipe tee, pipe high-neck butt joint, pipe flange, elbow flange angle joint. The forced circulation water cooling system ensures the long-term reliable operation of the whole machine. The one-button operation automatically completes the entire welding process, and the welding parameters can also be intervened in real time as needed. In addition, this automatic girth welder can directly call the corresponding welding process according to the weldment specifications and number.

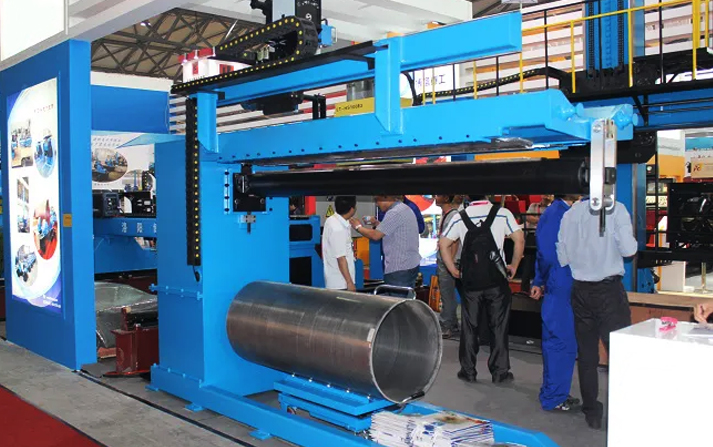

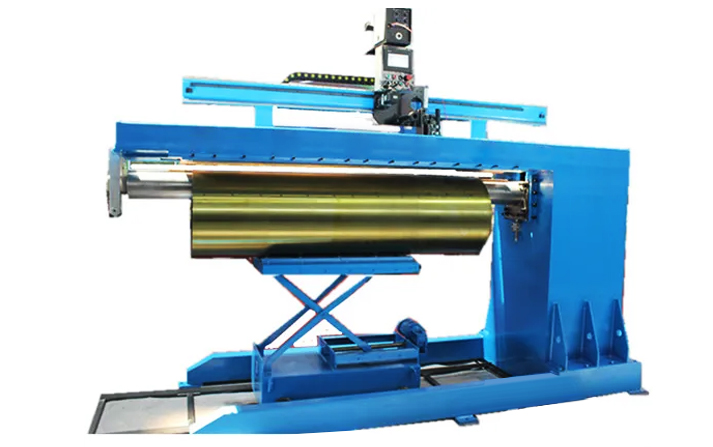

This seam tracking welding is a universal automatic welding equipment for butt longitudinal seam welding. It can be used for high-quality welding of materials such as carbon steel, low alloy steel, stainless steel, aluminum and its alloys, and can select argon arc welding (with or without wire), melting gas shielded welding (CO2/MIG/MAG), plasma welding, submerged arc welding and other welding power sources to form a set of longitudinal seam automatic welding system.

This longitudinal seam welder adopts dual design of front gas protection and back gas protection, among which the back gas protection has the function of automatic segmented gas supply. Such gas protection device design is especially suitable for welding carbon steel and stainless steel, which can reduce deformation and control the consumption of shielding gas.

This automatic tank welding machine is suitable for welding various tank head annular seams and cylinder straight seams, and is suitable for welding carbon steel, low alloy steel, stainless steel, and other materials. The clamping method is adopted, and the adjustable tank bracket and pneumatic clamping tailstock can significantly improve the clamping efficiency. In addition, the three-dimensional welding operating arm + welding gun angle adjustment mechanism of this automatic tank welding machine ensures the multi-position and multi-angle conversion of the welding gun.

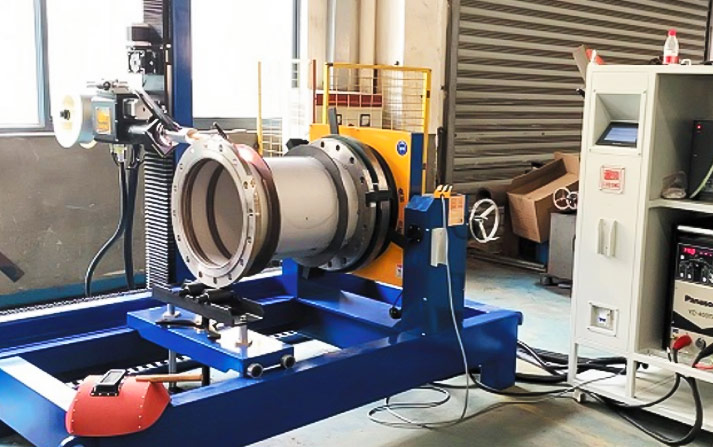

Used for fabricated pipe orbital welding projects. Suiting for Minimum pipe OD ≥50mm, which includes roller positioners, pipe centering support, welding actuator etc.

This LPG tank automatic girth welding machine is suitable for welding the circumferential and longitudinal welds of the cylinder. Equipped with independent control box and operation box, it can realize simultaneous welding of 2 power sources and roller frame. Linkage device, beautiful welding shape and high production efficiency.

The tank intelligent robot welding station is suitable for tank size OD 600-1200mm, length 600-6000mm. Robot walking is leaded by single side ground rail. Positioner leads work pieces rotating. They can ensure quality welding of different size and different position. The station uses laser weld seam tracker. It can locate weld seam position. Any position error can be corrected in time. It guarantees high precision and high quality welding.

This automatic tank welder has 5 welding strip transport methods, simulating manual strip transport, and the weld seam has a uniform appearance and is more stable. The welding seam width can be adjusted in a wide range of 0-30 mm, which can be adapted to the welding of various thin and thick plates. The welding speed, operation and power can be adjusted at will between 0-1 6 5 0 mm/min. This automatic tank welder can adjust the length and speed at will to adapt to welding at various distances.

This double-gun double-station automatic welding machine is suitable for long pipes, double-head flange inner and outer ring welds. Double-gun double-station welding can be equipped with a variety of welding equipment such as argon arc welding, two-shield welding, MIG/MAG welding, plasma welding, etc. Welding operating arm + full-angle positioner + welding gun angle adjustment mechanism ensures the welding gun can be converted in multiple positions and angles.
