6-station sheet automatic welding workcell is specially designed for size of stainless steel ring sheet: OD Φ32mm, ID Φ10mm, thinkness 0.2mm(customized). The station uses orbital seam welding technology. It includes operate system, weld system, control system and water cooling system. The whole coordinated system ensures stable and high weld quality. It improves weld efficiency and final product rate. The workcell can be used to the core position welding of sheet in kinds of heavy industries.

KHB12-80 Tube Sheet automatic welding machine is a specialized auto arc welding machine whereby the arc is rotated mechanically through 360° around a static work piece of tube to tube sheet with tube specification φ12～φ80 mm.

The tank intelligent robot welding station is suitable for tank size OD 600-1200mm, length 600-6000mm. Robot walking is leaded by single side ground rail. Positioner leads work pieces rotating. They can ensure quality welding of different size and different position. The station uses laser weld seam tracker. It can locate weld seam position. Any position error can be corrected in time. It guarantees high precision and high quality welding.

This mig welding carriage adopts a lightweight design, which is easy to carry and deploy. It is compatible with a variety of welding power sources and processes to meet the needs of different working environments. The welding carriage is equipped with a flexible and adjustable welding gun bracket and intelligent trajectory tracking function. It can be vertically welded or fillet welded, and the weld is straight and uniform, greatly reducing welding defects.

Our tube to tubesheet joints welding solutions ensure leak-proof and corrosion-resistant connections in high-pressure and high-temperature environments in equipment such as heat exchangers, condensers, boilers and pressure vessels. Computer-controlled parameters ensure consistent weld quality across multiple joints, minimizing defects and maximizing efficiency. Compatible with a wide range of materials, including stainless steel, carbon steel and exotic alloys such as titanium.

This portable welding carriage can realize various distances of welding, and the length and speed can be adjusted at will. The weld width is adjustable, the swing speed is adjustable, and five welding modes are optional. No manual care is required, and the efficiency is much higher than manual welding. Moreover, this portable welding carriage simulates manual welding rods, and the welds are beautiful and uniform, which can adapt to the welding of plates of various thicknesses.

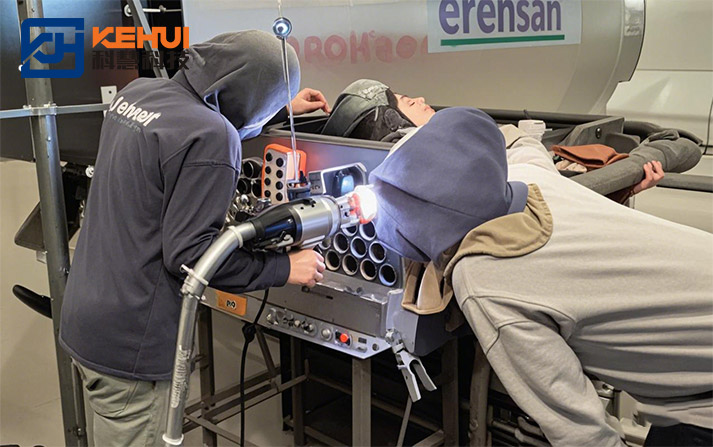

This tube to tubesheet orbital welding uses one-button operation to quickly position the welding gun, which is suitable for various welding forms such as tube extension, tube flushing, and tube shrinkage. It can be self-melting or wire-filling, suitable for welding materials such as carbon steel and stainless steel, and the overall structure design is compact. The hanger is suspended and fixed, with flexible working space and a wide range.

This welding track carriage uses stainless steel magnetic soft rails, which can be connected in multiples, with stable operation, beautiful welds, and automatic shutdown. In addition, this welding track carriage has various welding styles, including vertical welding, flat welding, straight welds, and circular welds.

This magnetic welding carriage has a built-in precise control system and supports multiple welding modes, such as straight welding and curved welding. Its powerful magnetic device can be firmly attached to any metal surface and is suitable for horizontal, vertical, inclined and curved surfaces. One person can operate multiple magnetic welding carriages at the same time, greatly reducing labor costs.
