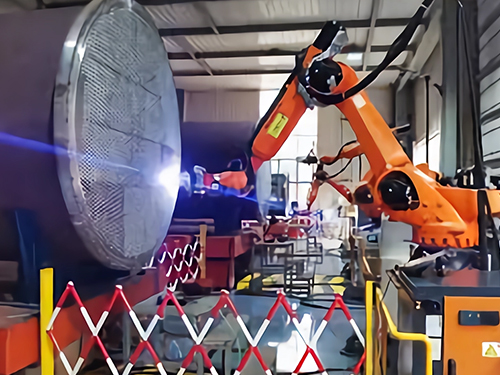

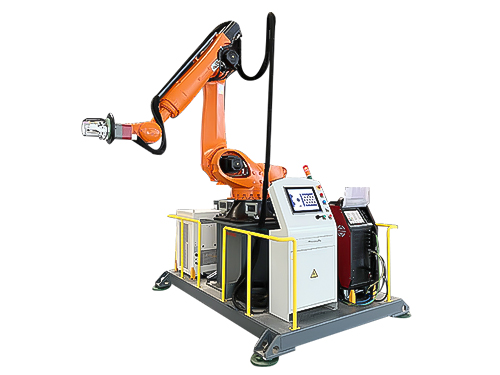

In recent years, traditional welding technology is being replaced by intelligent robotic welding systems. Robotic tube-to-tube sheet welding systems have significantly improved production efficiency and welding quality in many industrial fields. This article will explain the robotic tube-to-tube sheet welding system from four aspects: working principle, technical characteristics, use process, and application field.
Working Principle
The working principle of the robotic tube-to-tube sheet welding system is based on automatic control and intelligent feedback mechanism. First, the sensor collects various data generated during the welding process and inputs it into the control unit of the system. The control unit compares the preset welding parameters with the real-time collected data, and adjusts the welding path and parameters through intelligent algorithms. The control signal is then transmitted to the welding robot through the actuator to complete the precise welding operation.
In addition, the system also has a learning function. Through the accumulation and analysis of multiple welding data, the system can continuously optimize the welding path and parameters, adapt to complex and changing industrial environments, and improve overall productivity.
Technical Features
1. Precision sensing and data acquisition The system is equipped with high-precision sensors that can collect key data such as temperature, current, and voltage during welding in real time. Through these data, the system can accurately control the welding parameters to ensure the stability and consistency of the welding process.
2. Adaptive welding path planning Based on the 3D vision system, it can automatically identify the shape of the tube sheet and the position of the weld, and perform adaptive path planning. Whether it is a complex curved surface or a multi-layer welding task, the system can respond flexibly to ensure welding quality.
3. Real-time monitoring and feedback adjustment The system monitors the welding process in real time and automatically adjusts the welding parameters through a feedback mechanism. Such dynamic adjustment capabilities enable the system to adapt to various welding environments, reduce welding defects, and improve the yield rate.
4. Multi-material compatibility The robot tube sheet welding system is compatible with a variety of different materials such as stainless steel, carbon steel, and alloy steel to meet the special needs of different industrial fields.
Usage Process
1. Initial setup and programming Before starting welding, the operator needs to set up the system according to the specific welding task, including selecting welding materials, setting welding parameters, and writing welding programs. This step is usually completed through the human-machine interface, which is user-friendly and easy to operate.
2. Automated welding Once the setup is completed, the system will automatically start the welding task. The welding robot performs precise operations according to the preset path, and the sensor monitors the various parameters in the welding process in real time to ensure welding quality.
3. Quality inspection and adjustment After welding is completed, the system will automatically perform quality inspection and analyze the strength and integrity of the weld. If unqualified parts are found, the system will automatically adjust and re-weld according to the feedback information.
Application Areas
Welding of oil and gas pipelines and refinery equipment manufacturing; manufacturing of reactors, heat exchangers, storage tanks and other equipment in the chemical industry and welding of pipeline systems in chemical plants; welding of boilers and heat exchangers in the power and thermal power industry; welding of fuel pipelines and cooling system pipelines in the shipbuilding industry; pipe-to-tube sheet welding of neat conveying systems in the papermaking and textile industries; manufacturing of sewage treatment equipment in the water treatment industry.
Conclusion
As an important part of industrial automation, the robot intelligent tube sheet welding system is leading the innovation of welding technology. Through advanced technology, simple operation and wide application, it promotes the development of various industries in the direction of intelligent manufacturing and helps the continuous progress of the global manufacturing industry.
