The tank welding robot system is mainly composed of a 6-axis welding robot, a welding machine, a water-cooled box, a water-cooled welding gun, a laser tracking system, a robot walking track, a welding positioner, a fixture, a PLC control system, etc. The system design supports the welding of various tank sizes and materials, adapts to different production needs, and reduces equipment replacement time. Through the intelligent monitoring system, users can view the welding status and equipment performance in real time, remotely diagnose faults, and reduce downtime.

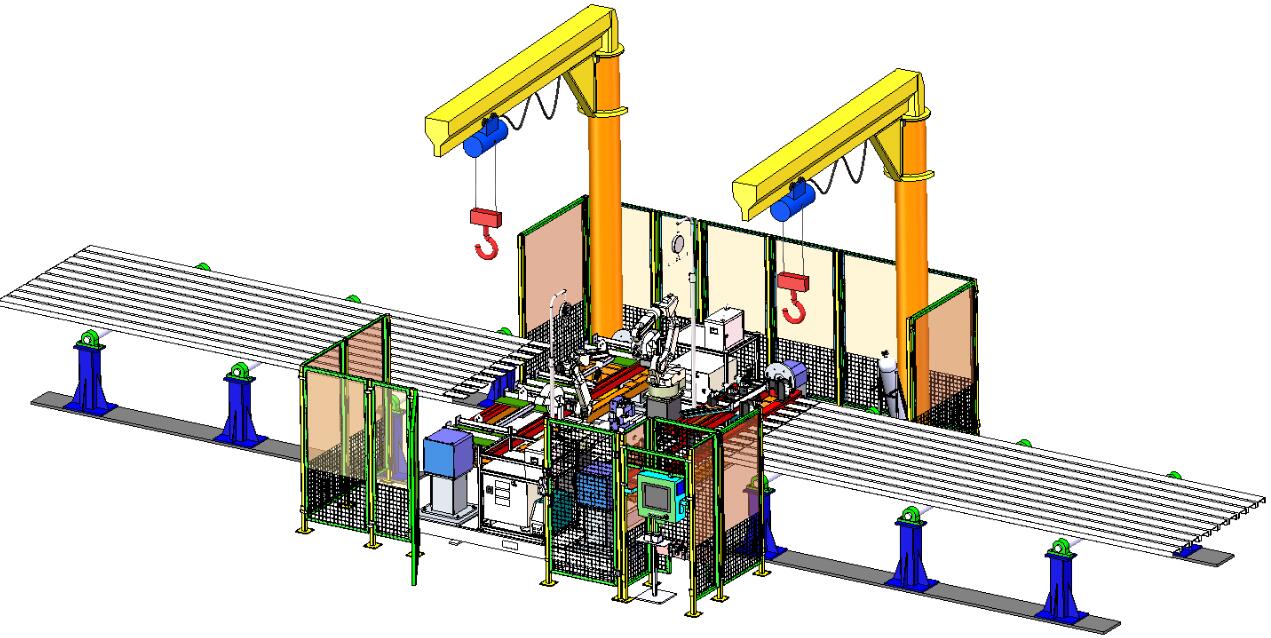

The belt conveyor roller support workstation places the robot and welding system in the center, with two sets of positioners on either side of the robot. The dual-station system can disassemble and clamp the workpiece at another station while the robot is welding at one station, allowing the robot to achieve uninterrupted welding. Can operate continuously for 24 hours.

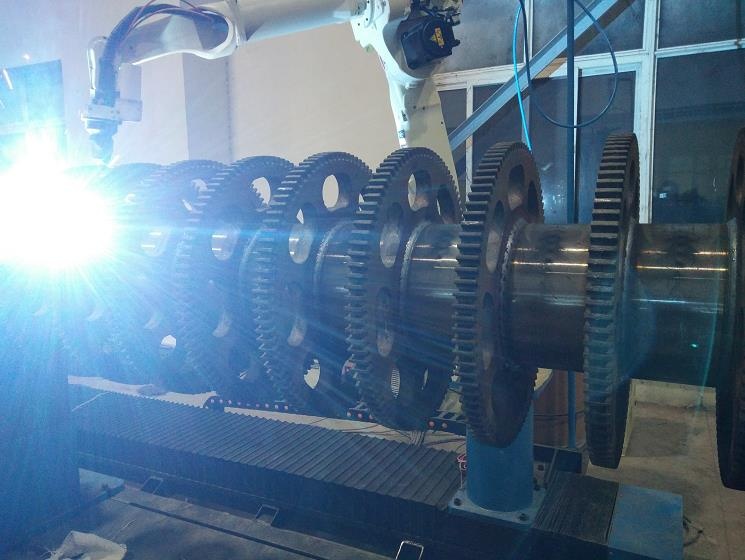

The textile roller robot automatic welding workstation is highly targeted and equipped with supporting fixtures. Comprehensive intelligent adjustments have been made to the overall frame workstation, equipment mechanical transmission, overall control accuracy, online control of welding quality, and coordination with peripheral equipment and the environment.

Heat exchanger filter and small hole robot plug welding station adopts auto welding of automatic TIG+ wire filling. Suitable for stainless steel material, single-sided welding double-sided forming. Uniform and beautiful weld seam meets HB5135- 2000 third-level weld standard.

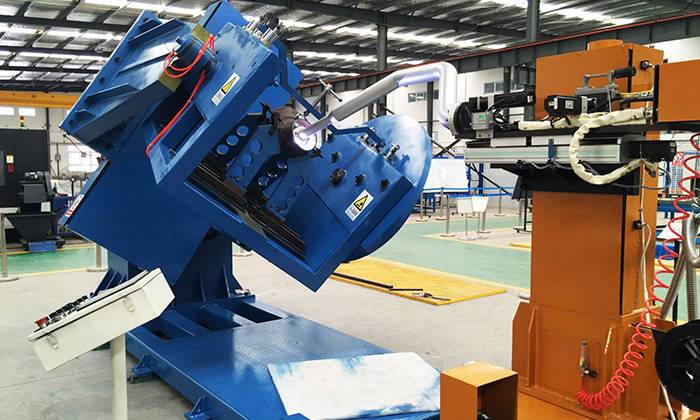

The elbow inner wall robot welding station is specially designed for 90 degrees elbow. It adopts heated TIG circumferential stip surfacing technology. The station consists of positioner, three dimensional frame worktable, TIG automatic welding system, workpiece turnover fixture, laser device, spraying device, electrical control system, etc. After one time fixture installed, it can finish the whole welding procedures.
