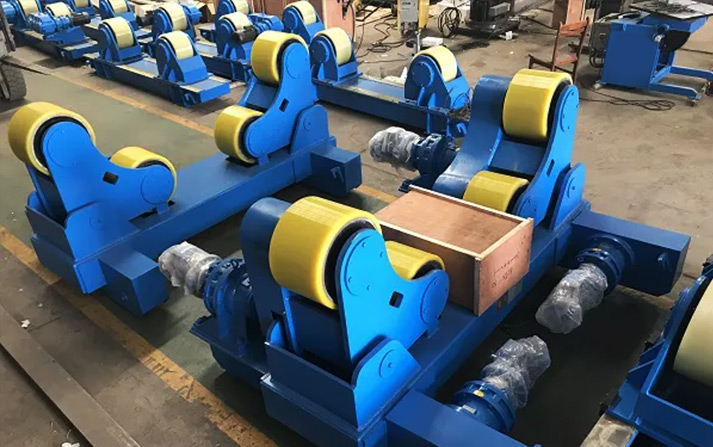

This welding turning roller is a set consisting of a driving frame, a driven frame, a control box, and a wired hand controller. It adopts Delta frequency converter for stepless speed regulation, with wide speed regulation range, stable operation, and multiple protections for overvoltage, overcurrent, overload and overheating. And the active frame of this welding turning roller has a certain degree of adaptability and can be adjusted according to the size and shape of the workpiece.

The welding rotator is a commonly used welding auxiliary device that is widely used in the welding production process. It mainly uses the friction between the weldment and the driving roller to drive the rotation of the cylindrical weldment. The combination of welding rotator, welding manipulator and welding positioner can realize automatic welding of internal and external circumferential seams, fillet welds and internal and external longitudinal seams of the tank.

The hydraulic group tank rotator has an advanced structure and complete functions. It has precise hydraulic control and automatic centering functions, and can adapt to the needs of different workpiece diameters and lengths. The trolley travel mechanism provides flexibility, allowing the equipment to be easily moved to the desired location. The application of the hydraulic group to the tank rotator improves the efficiency of product assembly and welding, and provides guarantee for product quality.

This tank welding rotator is a special equipment used to prevent axial movement when welding large workpieces. Special design and adjustment mechanism are used to ensure that the welded object does not move axially during the welding process. The translational actuator of the tank welding rotator realizes the purpose of adjusting the axis line of the welding part and adjusting the angle of the roller axis by making the rollers on both sides of the driven roller frame move horizontally perpendicular to the axis line of the welding part at the same time.

This welding rotator machine can adjust the distance between the rollers through bolts to adapt to workpieces of different diameters, so that they can roll on the roller frame at a specific rolling angle. Equipped with a remote handheld operation box, it is simple and convenient to use. At the same time, the welding rotator machine ensures the uniformity of the weld to a great extent by stably rotating the workpiece, thereby improving the welding quality.

This welding pipe rotator uses reserved screw holes or screws to adjust the center distance of the roller group to adapt to changes in workpiece diameter. The steel-rubber combined roller has large load-bearing capacity and strong driving ability. The imported frequency converter has no speed regulation, wide speed regulation range, high speed regulation accuracy and large starting torque. The overall structure of this welding pipe rotator adopts a stable steel design to ensure the stability of the equipment under high load and is suitable for long-term welding operations of large workpieces.

Tank turning rolls are a device used to support, rotate and handle large workpieces. Its basic structure usually includes long shaft, roller, active support and driven support, reducer, support structure, adjustment mechanism, safety device and other components. Through the support and rotation of Tank Turning Rolls, the uniformity of the weld seam and the welding quality can be ensured.

This tank turning rollers can adjust the roller spacing through bolts to accommodate workpieces of different diameters. Equipped with a multifunctional control system that allows the operator to adjust the speed, direction and adaptive functions of the rollers. In addition, this adjustable large-tonnage tank turning rollers can automatically adjust working parameters, adapt to workpiece shape and support workpiece rotation, reducing the need for manual intervention, thus speeding up the entire welding process.

The working principle of this pipe rotator is based on its designed movement and support functions to ensure the stability and controllability of large workpieces during operation. This pipe rotator is equipped with a running gear, usually a combination of wheels and drive. The drive can be electric or hydraulic. Through the control system, the operator can control the movement of the traveling mechanism so that the roller frame can move within the work area.
