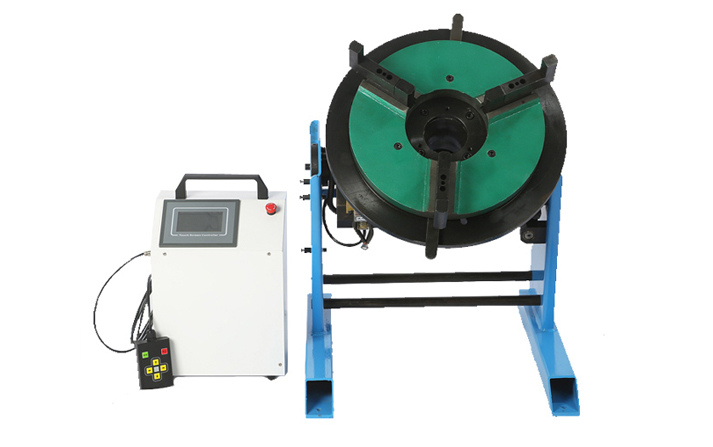

This is a high-precision CNC welding positioner turntable. The machine uses a touch screen as a human-machine interface, which is convenient for parameter setting. It can pre-store 10 welding programs and realize multi-zone continuous welding. It is equipped with a welding gun lowering/uppering time setting function. This welding positioner turntable can also realize the automatic advance and retreat function of the welding gun. Users can complete the whole set of functions of lowering the gun-arc starting-rotating welding-arc ending-gun lifting without operating the welding gun lifting device separately.

This welding turntable is designed to meet the manufacturing requirements by using the tilting and rotation of the worktable to put the workpiece at a suitable processing angle to meet the welding requirements of valves and flanges. This welding turntable is mainly used for welding, cutting, polishing and assembly of annular workpieces. It can be equipped with a welding chuck and a gun adjustment mechanism to fix the welding position and adjust the relative position of the workpiece and the welding gun. It adopts a variable frequency speed regulation system with stable performance.

This rotating welding table is a welding positioner that rotates the weldment around a vertical axis at a specified speed. In fact, it is a welding positioner without a tilting mechanism, mainly used for welding welds on the same plane, spiral surfacing on a plane, and cutting of the end edge of the head. It mainly consists of a base, a rotating mechanism, a drive system, and a controller. Selected high-end motors have strong anti-interference and more stable speed. The worm gear adopts a flipping mechanism with a self-locking function.

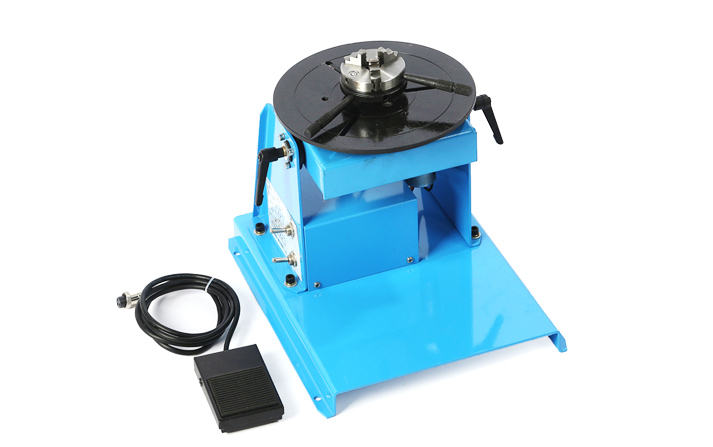

The main structure of this newly developed 10 kg rotary welding table is composed of a workbench, a flip mechanism, a control box, a reduction motor, a foot switch, a power cord and other parts. It has a precise structure, is easy to operate and flexible to use, and is especially suitable for welding flanges, steel pipes, rings, circles and other parts weighing less than 10 kg. It can be equipped with a thin chuck, a pneumatic tailstock, and a welding gun adjustment mechanism according to the different needs of customers to achieve the ideal automatic welding state of the circumferential seam.

This rotary welding positioner is mainly used for welding of circular welds. Its main function is to tilt and rotate the workpiece so that the weld is in the best position such as horizontal and ship-shaped for welding. The rotary welding positioner can fix the chuck or specific tooling on the workbench to clamp the workpiece for manual welding. The special anti-electromagnetic interference design effectively reduces the high-frequency interference during TIG welding and can effectively improve the welding quality.

The through-hole welding positioner facilitates the passage of slender pipes during welding, placing the weld in the most favorable welding position. It is especially suitable for the processing and production of workpieces such as corrugated pipes, automobile exhaust pipes, galvanized pipes, and wear-resistant equipment. The welding positioner can be used in conjunction with the welding manipulator to achieve automatic welding, and can also be used for cutting, grinding, assembly, testing and other processes.
