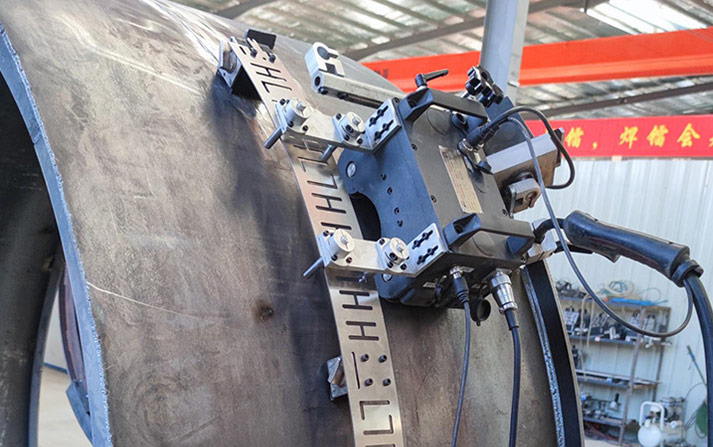

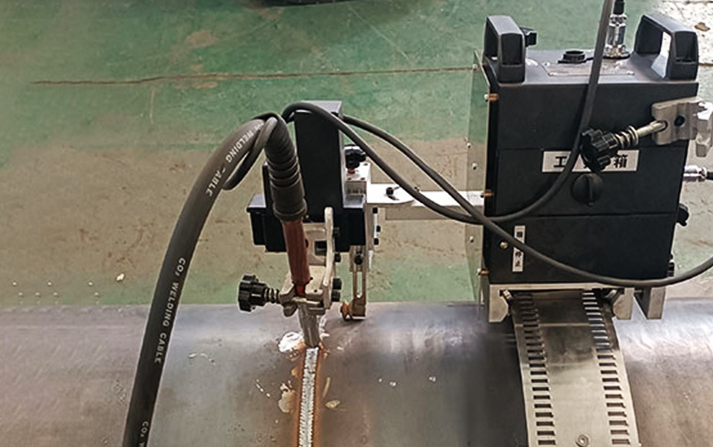

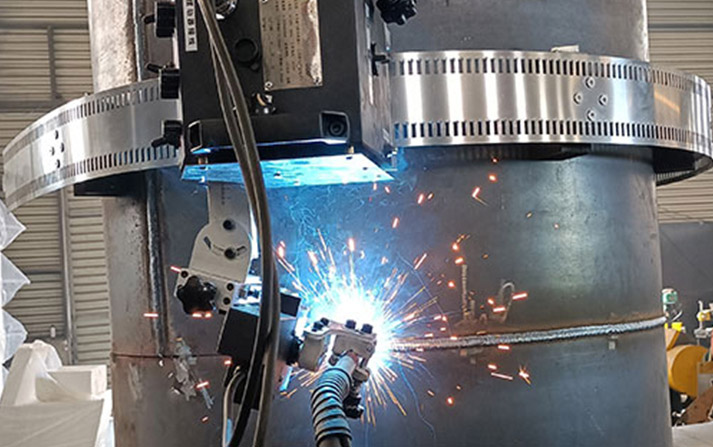

The KHPP Magnetic Type Orbital Pipe Welding Machine is a customized machine, which is used for fabricated tube orbital welding projects - the pipe is fixed, welding carriage do all-position welding around the tube with the efficiency-cost MIG welding process. Suiting for large sizes tube Diameter≥140mm (≥5 inch), thickness 4 - 60mm.

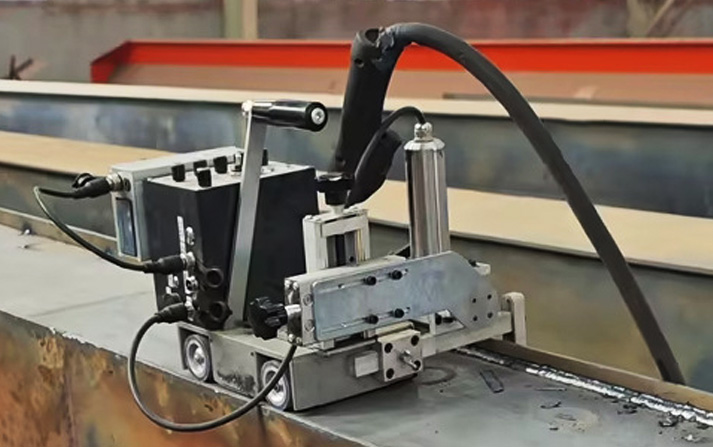

This automatic tank welder has 5 welding strip transport methods, simulating manual strip transport, and the weld seam has a uniform appearance and is more stable. The welding seam width can be adjusted in a wide range of 0-30 mm, which can be adapted to the welding of various thin and thick plates. The welding speed, operation and power can be adjusted at will between 0-1 6 5 0 mm/min. This automatic tank welder can adjust the length and speed at will to adapt to welding at various distances.

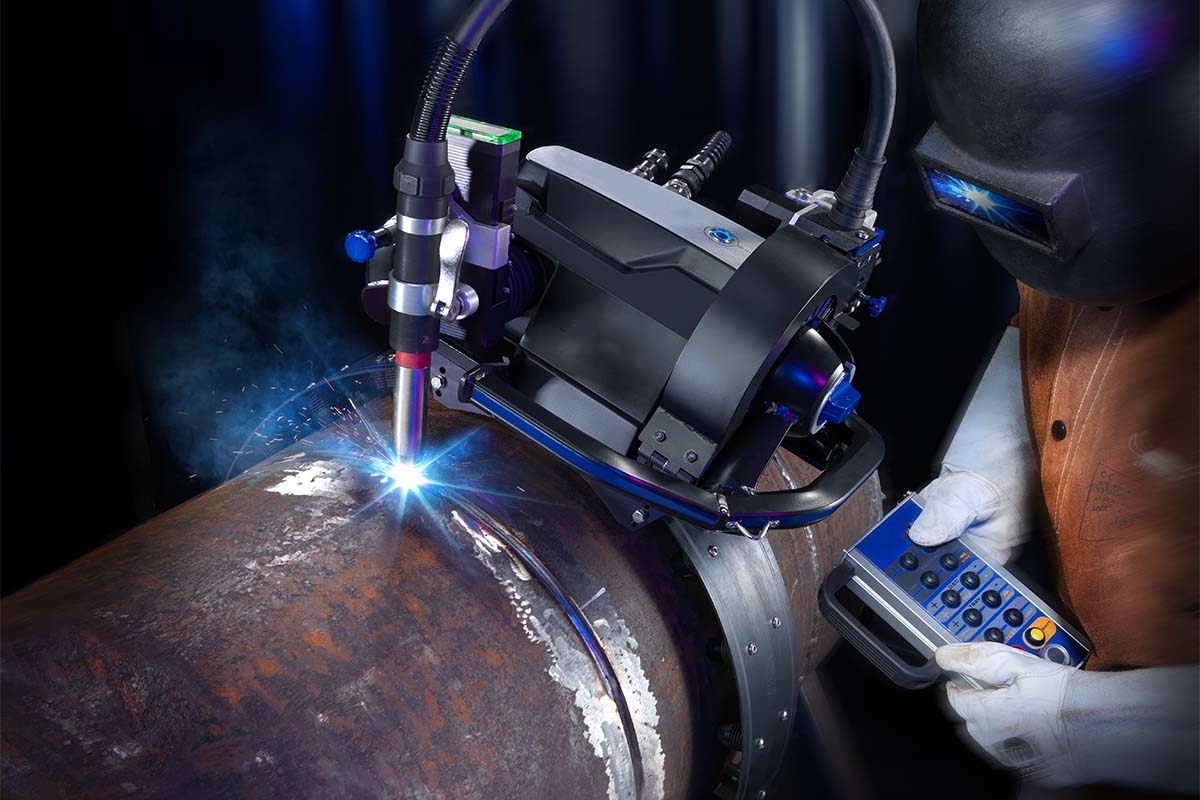

This large orbital pipe automatic welding machine enables high-precision welding operations with the help of advanced sensors and control systems. The welding position, welding angle and welding seam quality can all meet national standards.

The KHGC pipe automatic welding machine is a full-position automatic pulse tungsten argon arc welding system designed for the butt jointing of various pipes; the KHGC series closed pipe-pipe fully automatic pulse argon arc welding machine can be used for pipes with outer diameters Ф3-Ф180mm. —Automatic welding of pipes in all positions. Especially suitable for welding carbon steel, alloy steel, stainless steel, and titanium alloy thin-walled pipes. Double clamping positioning, no positioning spot welding required.

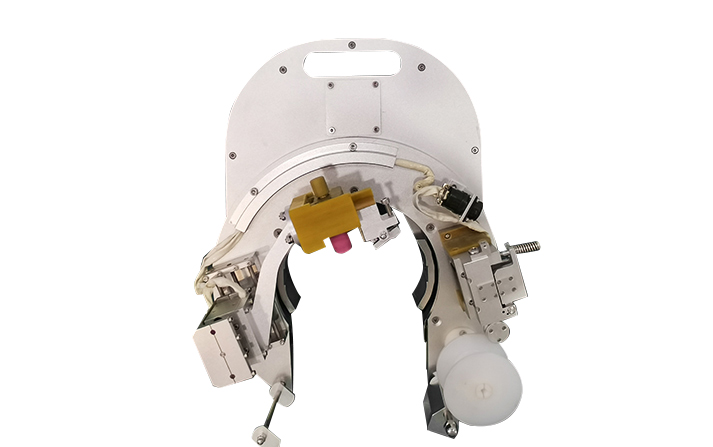

KHGC series enclosed type orbital weld head can be used for tube outer diameter from Ф3-Ф180mm tube to tube automatic welding at all positions. It is suitable for welding carbon steel, alloy steel, stainless steel, and titanium alloy thin-walled tubes. In addition, this orbital weld head uses a maxon servo motor that is suitable for small spaces. The welding head can rotate continuously without the need for spot welding.

KHGC Closed Head Orbital Tube-Tube Welding Machine is a specialized automatic orbital tube welding machine, It can automatic welding 360 degrees around the tube, There are 6 welding heads at the same time, which can adapt to the welding of different sizes of tubes.

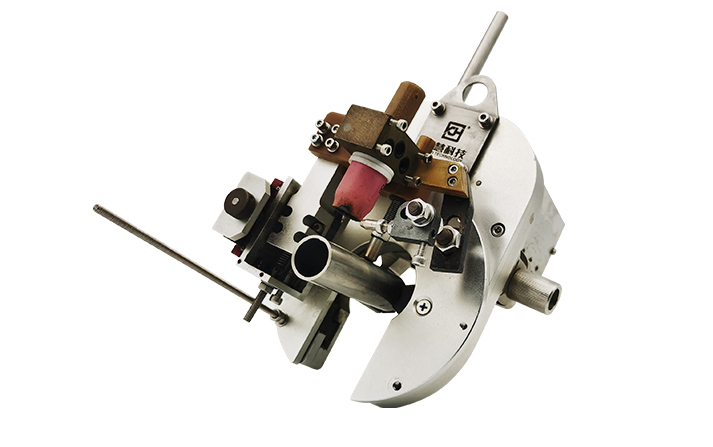

The open weld head is designed as a tool for filler wire orbital TIG welding. This series of welding heads has AVC/OSC functions and is commonly used for thick-wall (1.5mm - 20mm) pipe-to-pipe/elbow/flange welding. The full range of welding heads covers the pipe outer diameter range from 16mm to 324mm. Tube-to-tube welds are a form of caliper design,pipes can be easily clamped and easily adjusted to accommodate pipes of different diameters.

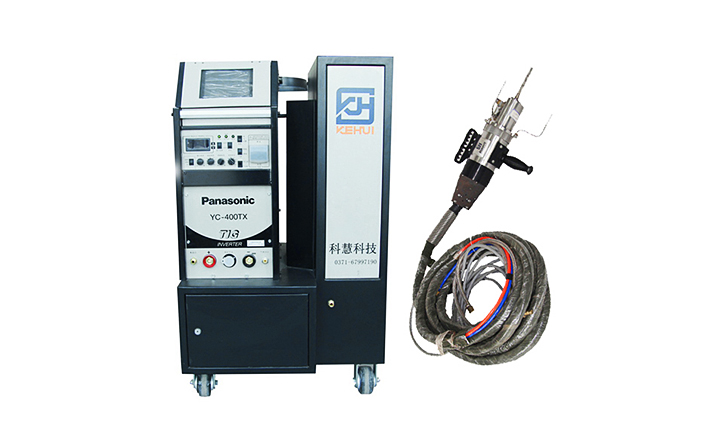

KHB12-80 Tube Sheet automatic welding machine is a specialized auto arc welding machine whereby the arc is rotated mechanically through 360° around a static work piece of tube to tube sheet with tube specification φ12～φ80 mm.

KHGK series pipe-to-pipe fully automatic pulse argon arc welding machine is specially designed for all-position automatic welding of pipes with an outer diameter of 16 to 300mm. The entire set of equipment is independently developed by our company. It adopts advanced inverter DC pulse argon arc welding power supply, vehicle-mounted integrated design, touch screen data input, and PLC module control system.
