According to the different needs of the current automated welding process, welding robots can be divided into many types, mainly including spot welding robots, arc welding robots, laser welding robots and pipeline welding robots. This article will introduce the types of welding robots in detail.

1. Spot welding robot

Spot welding robots are mainly used to weld the contact points of two metal plates, and are usually used in mass production scenarios such as automobile manufacturing, metal frame welding, and home appliance industry. The structure of the spot welding robot is relatively simple. It is usually equipped with a multi-axis robotic arm and spot welding clamps. By controlling the movement and pressure of the welding gun, precise welding positioning and operation can be achieved. The spot welding robot can quickly complete a series of spot welding actions and is very suitable for assembly line production. Due to its high speed and strong stability, it has obvious advantages in body welding and fixed connection of metal frames.


Application scenarios:

Automobile body welding

Bicycle frame welding

Household appliance casing welding

Heavy machinery structure welding

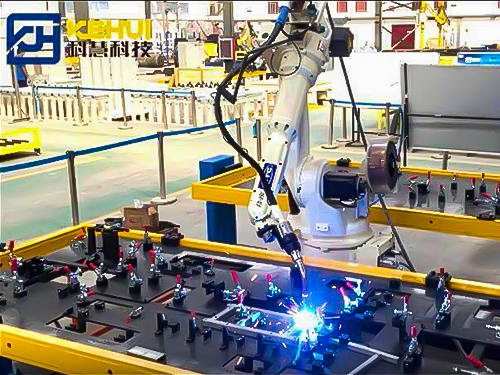

2. Arc welding robot

Arc welding robots are mainly used in scenarios that require continuous welding, such as steel structure manufacturing, pipeline welding and the production of heavy equipment. Arc welding robots use electric arcs as heat sources and connect welded parts together by controlling the melting of welding wire. Arc welding robots are usually equipped with six-axis robotic arms, which can complete welding work at different spatial angles, and can adjust welding parameters such as current and voltage to adapt to different materials and welding requirements. Compared with manual arc welding, arc welding robots can significantly improve production efficiency while maintaining welding quality.


Application scenarios:

Steel structure manufacturing

Pressure vessel welding

Metal pipe welding

3. Laser welding robot

Laser welding robot achieves welding through the high temperature generated by the laser beam, which is a precise and efficient welding method. Because laser welding has a small heat-affected zone and fine welds, it is particularly suitable for high-precision electronic products, medical devices and other fields. Laser welding robots are usually equipped with high-precision lasers and advanced cooling systems, which can maintain stable welding quality under high temperature conditions. Laser welding robots have extremely high flexibility and can weld tiny parts and complete the welding of complex curves.


Application scenarios:

Automobile parts welding

Precision instrument manufacturing

Mechanical equipment manufacturing

Metal 3D printing post-processing welding

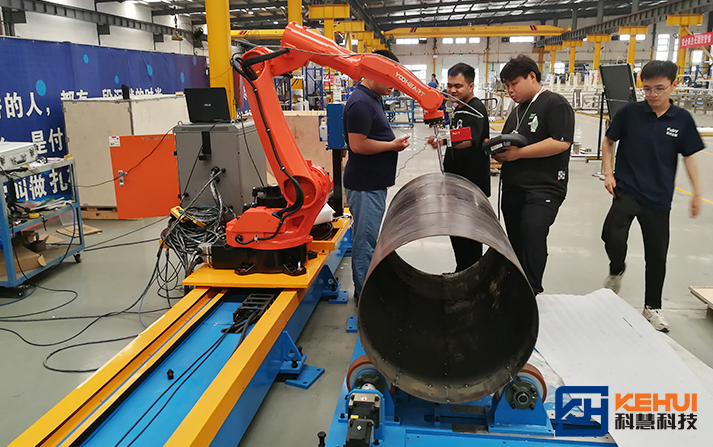

4. Pipe welding robot

Pipe welding robot is a robot designed specifically for pipeline welding needs. It is suitable for industries such as oil, natural gas, and chemicals that require long-distance pipeline connections. This welding robot can complete welding operations under different pipe diameters, wall thicknesses, and space restrictions. The pipe welding robot is equipped with advanced sensors and control systems that can automatically adjust welding parameters and detect weld quality in real time. The pipe welding robot can ensure the uniformity and consistency of welding quality, effectively reduce human errors, and is suitable for pipeline connections that require high strength and tight sealing.

Application scenarios:

Oil and gas pipeline construction

Chemical pipeline engineering

Submarine pipeline laying

Summary

Welding robots have a wide range of applications in different industrial fields. Different types of welding robots can perform specific welding tasks according to differences in welding methods, welding materials, and working environments. In the future, with the continuous advancement of automation technology and the diversification of welding needs, welding robots will further improve their intelligence level and gradually achieve more comprehensive and efficient welding automation.
