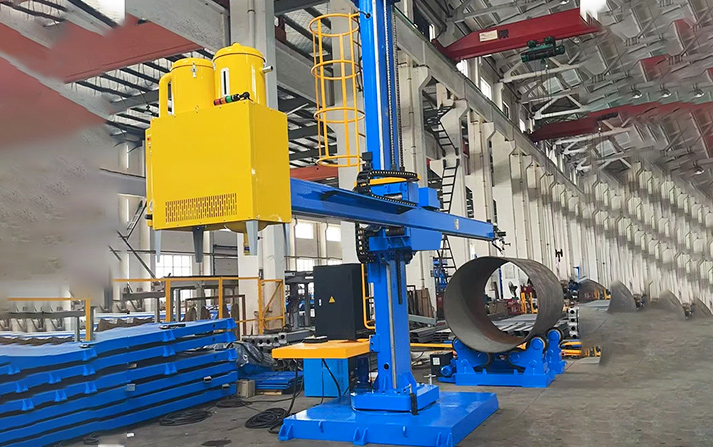

The welding column boom system is mainly composed of a column, a boom, a welding head, a drive device, a guide rail system and a control system. The column is a vertical support structure responsible for providing the up and down (vertical) movement path of the welding head; the boom extends horizontally and undertakes the horizontal movement of the welding head. The entire system can be installed on a fixed foundation or configured with a mobile base for flexible operation over a large range.
Operation mechanism
The operation of the column and the boom is achieved through a drive device. Commonly used drive systems include motors, gear rack transmissions, screw lifts or hydraulic systems.
1. Vertical movement (column part): Guide rails and drive devices are usually installed in the column, and the welding head is vertically moved by a slide mounted on the column. The motor or hydraulic device drives the slide to slide up and down along the guide rail. The high precision of the lead screw and nut drive is suitable for welding applications with strict requirements for vertical movement. Vertical movement usually requires limit switches or sensors to ensure safety and position control.
2. Horizontal movement (boom part): The boom is usually moved horizontally by gear rack drive, electric slide or chain drive. One end of the boom is fixed to the column, and the other end is extended to carry the welding head and move horizontally. The motor provides power and pushes the welding head to slide forward and backward along the boom through the transmission device to adjust the position of the welding head to adapt to different welding paths. Some booms also have telescopic functions, which make them adjustable in length to cover a wider range of welding operations.
Motion control of welding head
As the core component, the welding head directly performs welding operations. The movement of the welding head is controlled by the column and the boom to achieve the welding of complex welds. Modern systems mostly use CNC technology to make the movement of the welding head more precise. The operator can enter parameters or preset programs through the control panel to make the welding head move along the set path, thereby ensuring the consistency and quality of the weld. The moving speed and trajectory of the welding head have a great influence on the welding quality. The system usually has a speed adjustment function to meet different materials and welding requirements.
Advantages and Applications
The Welding column boom system can achieve stable and efficient automated welding operations by precisely controlling the movement of the welding head in both vertical and horizontal directions. Its flexible movement characteristics are particularly suitable for the welding of large components, such as storage tanks, pressure vessels, steel structures, etc. The system can significantly reduce manual intervention, improve production efficiency, and reduce errors and instabilities generated during welding.
Summary
The Welding column boom system realizes multi-dimensional precise movement of the welding head through the vertical drive of the column and the horizontal drive of the boom, making it an indispensable equipment in modern industrial welding. Its high efficiency and precision provide a reliable solution for the welding of large-scale and complex structures.
