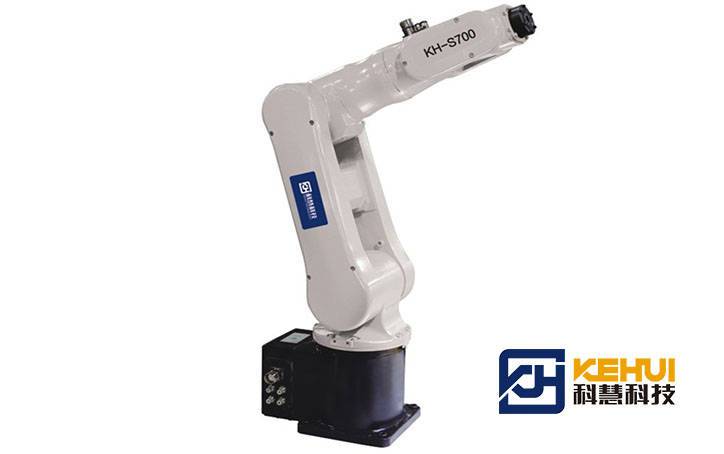

KH-S700 Small 6-axis robot for material handling and assembly
S Series robots are compact, small and lightweight, ideal for material handling, picking up and sorting, and assembly applications with fast speed and high accuracy. With build-in cables, S Series robots can fit in narrow working space and can be floor mounted, inverted on the wall in any angle.

Application:

Materials handing Assembling Palletizing Welding

Parameter:

Materials handing Assembling Palletizing Welding
info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage
  1. Light weight
  2. High running speed
  3. High position repeat accuracy
  4. Build-in cable
Structure
Parameter
Model KH-S700
Wrist Payload Rated 3kg
Maximum 5kg
Max Working Radius 700mm
DOF 6





Max Speed		 J1 245° Is
J2 185° /s
J3 290° /s
J4 300° /s
J5 460° /s
J6 600° /s





Max Operation Area		 J1 ±170°
J2 ±110°
J3 +40°-- -220°
J4 ±185°
J5 ±125°
J6 ±360°

The Max Moment Allowable Torque		 J5 35Nm
J6 24 Nm
Weight 30 kg
Position Repeat Accuracy ±0.03 mm
Working Temperature 0~40°C
