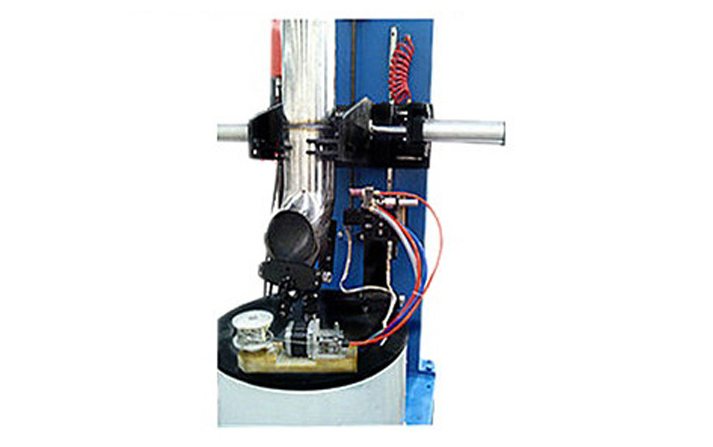

KHGL pipe butt joint automatic pulse argon arc welding machine
KHGL pipe-to-head automatic welding machine is a special welding machine specially designed for TIG welding of pipe-to-joints, flanges, etc. Automatic welding of elbow shapes. Depending on the needs of the welding process, single-position or all-position welding can be achieved. It can weld butt welds or fillet welds. You can choose to use self-fusing, wire filling, or self-fusing first and then filling wire, etc. The operation is convenient, fast and labor-saving.

Application:

Mainly used in automated welding of oil pipes, pipe flanges, and pipe elbows in aerospace, automobile manufacturing, engineering machinery, petroleum, shipbuilding and other industries.

Parameter:

Advantage
1. Product Highlights


1. Suitable for automatic welding of pipe-pipe, pipe-flange, pipe-joint, etc. with outer diameter of φ8~φ150mm.

2. According to the needs of the welding process, you can choose to use self-melting, wire filling, or self-melting first and then filling wire, etc., which is easy, fast and labor-saving to operate.

3. The power supply and machine head adopt forced air cooling and built-in circulating water cooling, which can ensure normal operation in the wild or in places without water sources.

4. Use pneumatic clamping to firmly position the workpiece on the workbench without human intervention.

5. Wire feeding without winding, built-in integrated wire feeding machine

  1. Each part adopts separate design to facilitate disassembly and assembly between or within various production sites.
Structure
Parameter
Weldable materials Carbon steel, alloy steel, stainless steel
Welding method Pulsed argon arc welding (TIG)
Weldable pipe diameter 8-150mm
Tungsten electrode diameter 1.0-2.4mm
spinning speed 50-150mm/min
Torch inclination angle 0°-45° adjustable
Protective gas Argon
cooling method Air cooling and water cooling optional
Welding wire diameter 0.8/1.0mm
Maximum wire feed speed 2000mm/min
