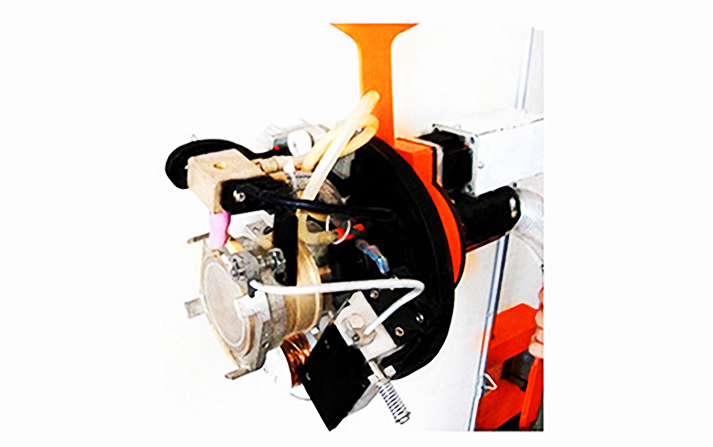

KHGF Pipe-Head Automatic Pulse Argon Arc Welding Machine
This KHGF pipe-head automatic pulse argon arc welding machine adopts pulse argon arc welding technology, which can effectively control the welding current and voltage to achieve a stable welding process. The pulse welding method can also reduce heat input, avoid defects such as welding deformation and pores, and improve welding quality.

Application:

Petrochemical, shipbuilding, aerospace, refrigeration, medicine, food machinery and other industries

Parameter:

Advantage
1. Suitable for welding heads and pipe structures.
2. The machine head has a compact structure and small size. It adopts four-corner chuck calibration, electromagnet positioning, and has its own automatic arc length tracking system.
3. Using PLC control system, the control is accurate and reliable, and the anti-interference ability is strong.
4. The operation interface adopts LCD touch screen mode, bilingual operation in Chinese and English, simple input, intuitive and convenient, and can store 100 sets of welding processes.
5. Using IGBT inverter controlled DC pulse power supply, it has high welding efficiency, strong arc stability and beautiful weld bead shape.
6. Forced water cooling system, equipped with a 16-liter stainless steel water tank, is not restricted by on-site water source water pressure and other conditions, and the cooling is sufficient.
Structure
Parameter
Weldable head diameter 89mm——159mm
Weldable materials Carbon steel, alloy steel, stainless steel
Welding torch rotation speed 0.2-0.8rpm
Wire feed speed 0-1.5m/min
Welding torch tilt angle 0°-30°
Welding method Pulse TIG welding
Tungsten electrode diameter 1.0-2.4mm
spinning speed 50-150mm/min
Protective gas Argon
cooling method Air cooling and water cooling optional
Welding wire diameter 0.8/1.0mm
Maximum wire feed speed 2000mm/min
