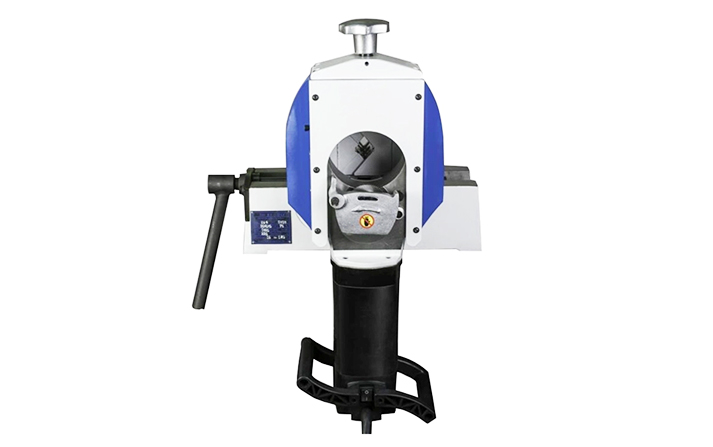

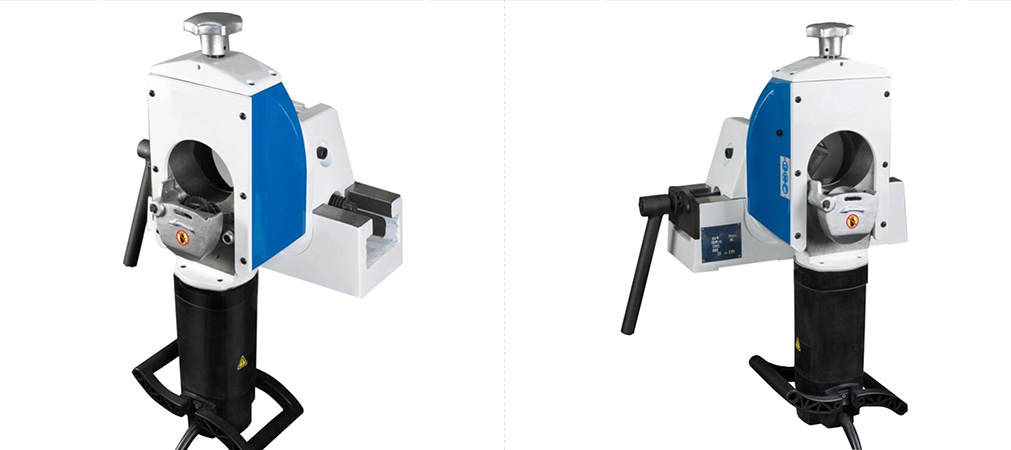

Planetary Orbital Pipe Cutting Machine Stainless Steel Tube Cutter
This steel pipe cutting machine uses planetary cutting technology, with multiple cutting blades rotating around the pipe at the same time, and is suitable for cutting thin-walled stainless steel pipes and pipe elbows.

Application:

Suitable for pipe cutting in semiconductor, electronic equipment, beer, pharmaceutical, biotechnology, beverage, dairy, pressure vessels, oil, natural gas, chemical, aviation and aerospace industry, shipbuilding, power construction, boiler, water treatment and other industries

Parameter:

info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage

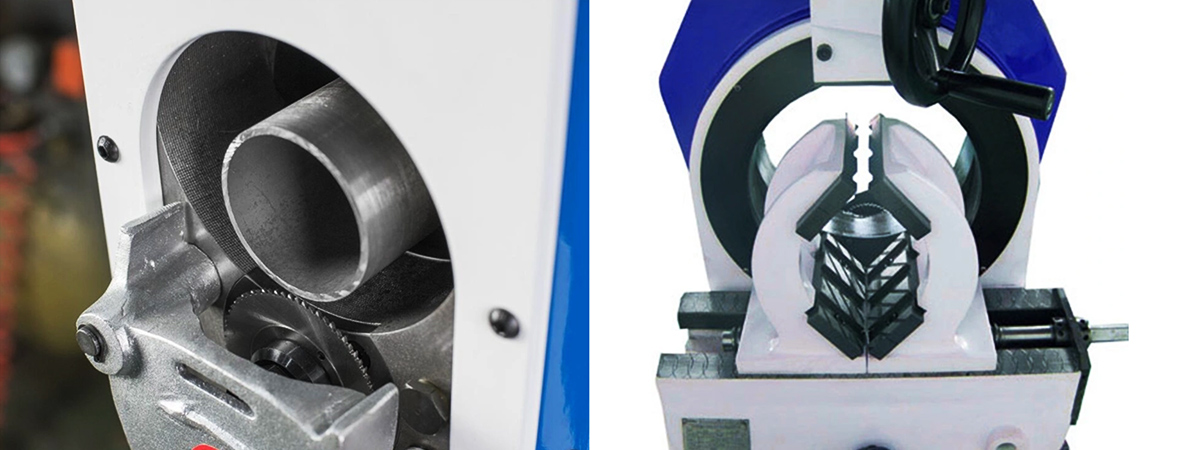

Structure
Parameter
Name  Orbital pipe cut machine Orbital pipe cut machine Orbital pipe cut machine Orbital pipe cut machine Portable pipe cut machine
Pipe OD[mm] 19-120mm 44-182mm 150-230mm 215-325mm 10-120mm
Wall thickness 1-7mm 2-10mm 2-10mm 2-10mm 1-3mm
Weiht (kg) 75kg 90kg 110kg 130kg 28kg
Voltage  110/220V,50/60Hz 110/220V,50/60Hz 110/220V,50/60Hz 110/220V,50/60Hz 110/220V,50/60Hz
Power   1800W 1800W 1800W 1800W 1100W
Speed knob position 1-2 class 3-4 class 3-4 class 5-6 class
Rotation speed 150-183 r/min 183-216 r/min 183-216 r/min 216-250 r/min
Applicable pipe material Stainless/alloy steel Alloy steel Alloy steel Plastic,strctural/galvanized steel
