When manufacturing a shell and tube heat exchanger, the tube sheet welding stage is often the most time-consuming and labor-intensive part of the entire process. Hundreds or even thousands of tubes must be welded to the tube sheet with consistent penetration, high repeatability, and zero defects. This is exactly where a tube to tube sheet orbital welding machine brings real value—by improving weld quality while dramatically cutting manufacturing time.

How the Equipment Is Built and Why It Matters

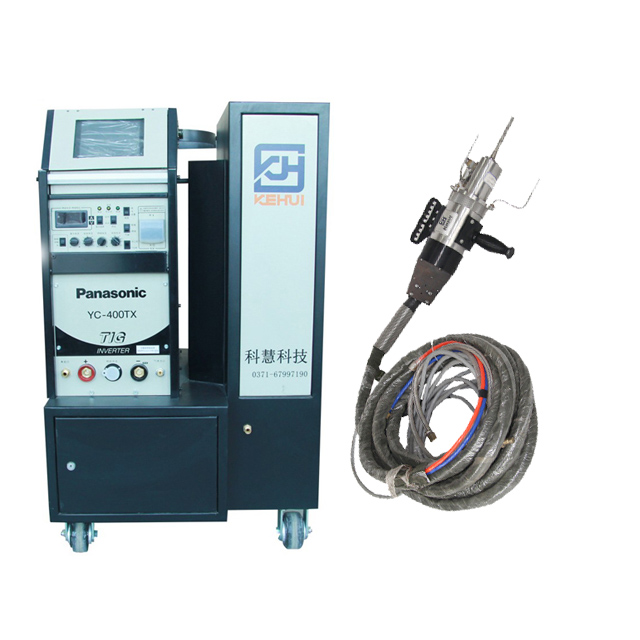

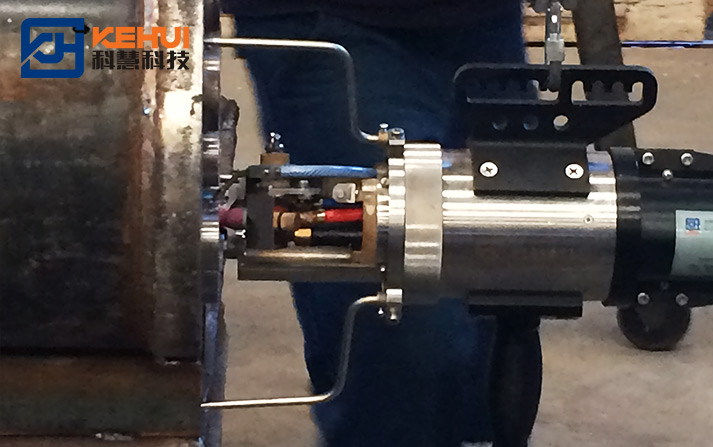

A modern tube to tube sheet orbital welding machine is composed of several core modules:

Closed or open orbital weld head designed to clamp firmly around each tube end
Digital orbital welding power supply that controls current, pulse parameters, and arc stability
Motion control system that ensures smooth, precise rotation around the tube
Cooling module to maintain stable welding temperature
User-friendly software that stores welding programs for different tube sizes and materials

These components work together to deliver a repeatable and fully controlled welding cycle. Unlike manual TIG welding—which relies heavily on operator skill—the orbital weld head provides a mechanically stable arc position and uniform heat input. This results in cleaner, stronger welds throughout the entire shell and tube heat exchanger tube sheet.

How the Tube to Tube Sheet Welding Process Works

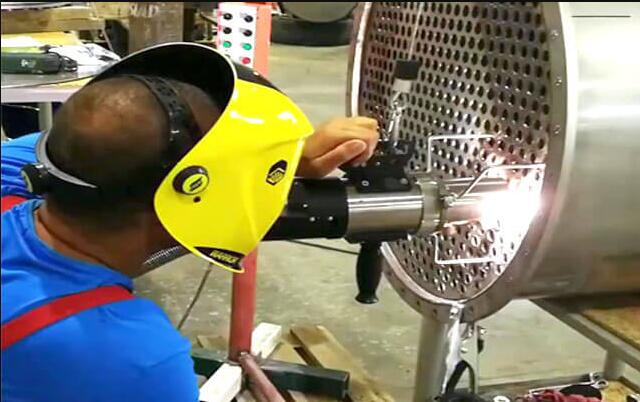

The operation of a tube to tube sheet orbital welding machine is straightforward:

1. Insert the tube into the tube sheet and tack or mechanically secure it.
2. Clamp the orbital weld head around the joint.
3. Select or load the welding program based on tube diameter, material, and tube sheet thickness.
4. The machine automatically initiates the TIG arc and rotates around the tube, completing the weld in a controlled pulse cycle.
5. Inspect and move to the next tube—repeatable, consistent, and fast.

This automated process ensures full-penetration welds that meet the tight tolerances required for shell and tube heat exchanger welding, especially in industries such as petrochemical, HVAC, power generation, and food processing.

Shortening Lead Time in Heat Exchanger Bundle Manufacturing

One of the major benefits of using orbital welding is production speed. When manufacturers make use of the orbital welding machine to shorten the lead time of heat exchanger bundle manufacturing, they often see:

2–4× faster welding cycle times
Fewer weld defects and rework
More stable production planning
Higher operator safety and reduced fatigue

Because the tube to tube sheet orbital welding machine stores multiple welding programs, switching between tube specifications becomes quick and simple. This is critical for engineering companies dealing with multi-spec heat exchanger designs.

Why Orbital Welding Is Essential for Tube Sheet Welding of Heat Exchangers

Conclusion: A Smart Investment for Any Heat Exchanger Manufacturer
