KH-315A Orbital Welding Machine
KH auto pulse argon arc orbital welder can realize auto welding of KHGK Caliper tube - tube, KHGC closed tube-tube and KHB12-80 suspension tube plate. It adopts advanced inverter power supply, self-designed control system and accordingly control software.

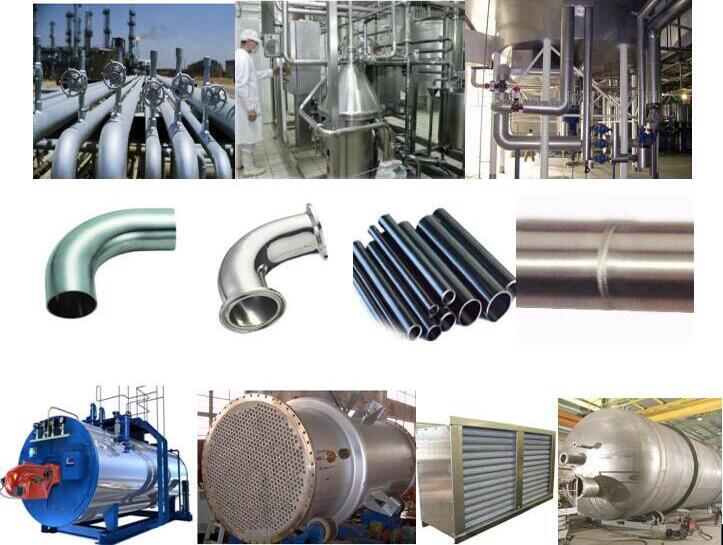

Application:

Boiler, heat exchanger, pharmaceutical, chemical, food machinery, engineering installation, industrial pipeline, biological engineering, refrigeration engineering, electronic equipment, instrumentation ships, military industry, nuclear power, etc.

Parameter:

Power: 50/60Hz, single phase Power control mode: IGBT inverter control Rated input voltage: AC 200/220V ±10%(380V, 3 phase available ) Welding current(base current): 4~300A
Advantage
1.To addresses the issue of operator error in GTAW / TIG . computer-controlled process runs with little intervention from the operator.

2.Three-in-one Multi-function, It is wildly used for KHGK, KHGC, KHB12-80 series 11 different type of orbital welding heads.

3.To guarantee high quality repeatable welding. a successful programming monitors variables and performs periodic samples during its test welding. LCD touch screen, easy to input.

4.Intelligent welding . 100 successful programming stored in PLC, just pick one.

5.High productivity.  2-3 times higher than conventional TIG welding.

6.10 hours continuous welding. qualified welding head and power and water cooling system make it.

7.Car-integrated design, freedom of movement.

8.Small space of scientific design

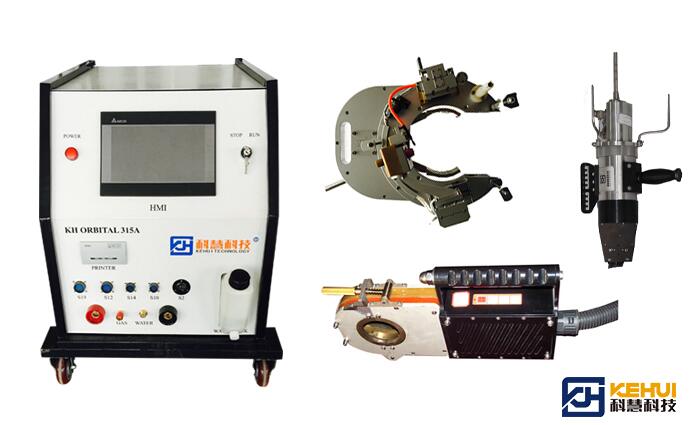

KH-315A Multi-function Automatic TIG welder is a power source with Multi-function control system, which suits for KHGC, KHGK and KHB12-80 series various of tube orbital welding heads and Tube to tube sheet orbital welding head.

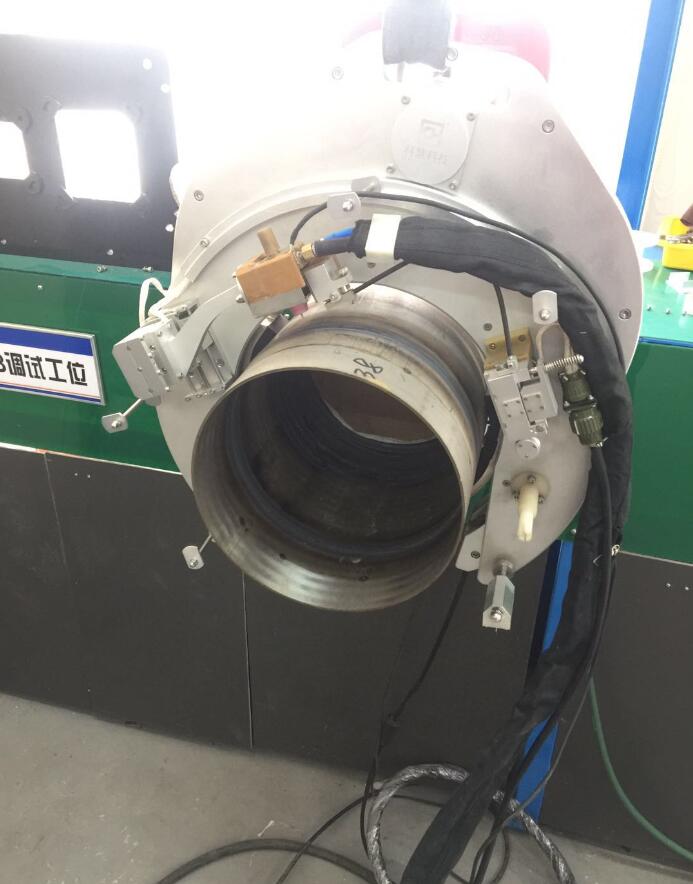

1)KHGK series open-frame orbital welding heads are used to weld tube OD 16mm - 300mm, and the tube wall-thickness is 1.5mm - 20mm.

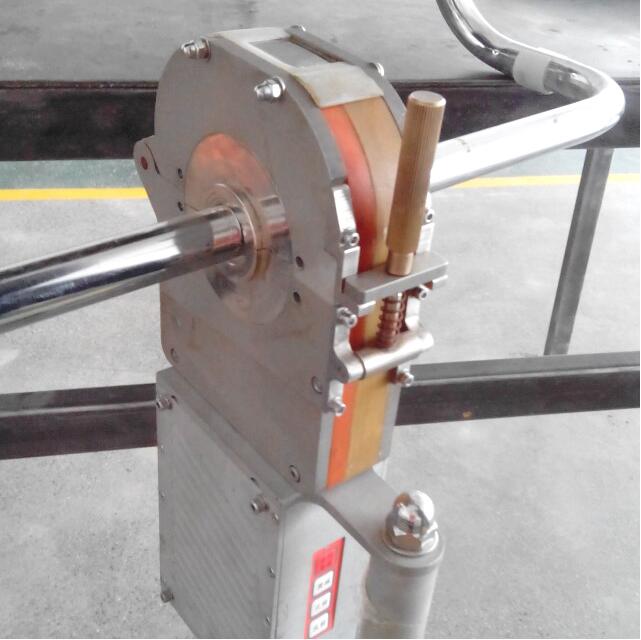

2)KHGC series closed- frame orbital welding heads are used to weld tube OD 3mm - 180mm, and the tube wall-thickness is less than 3mm.

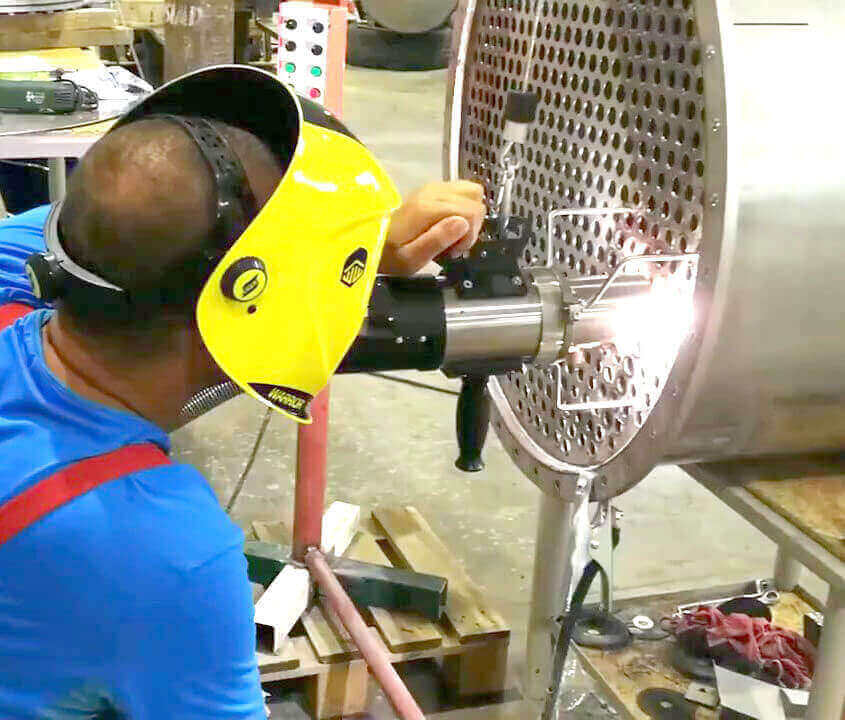

3)KHB12-80 series Tube to tube sheet orbital welding head is used to weld tube to tube-sheet, the tube OD 12 - 80mm, Max. 89mm,  and tube thickness 1 - 6.5mm.





























NOTES:

1.the tubes must be standard type, the deviation must be within machine tolerance.

2.A trained operator is necessary to make sure its normal work.

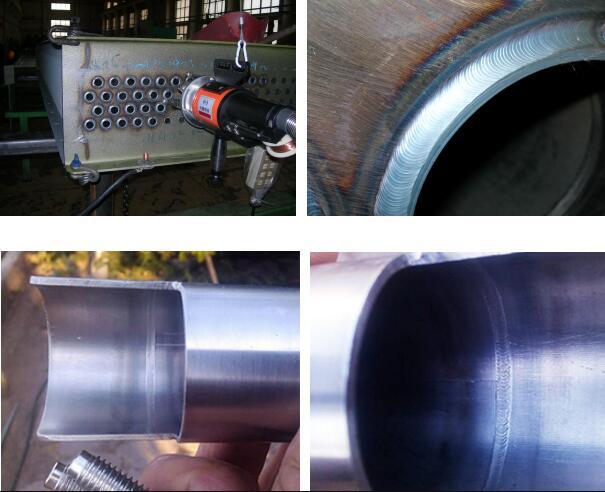

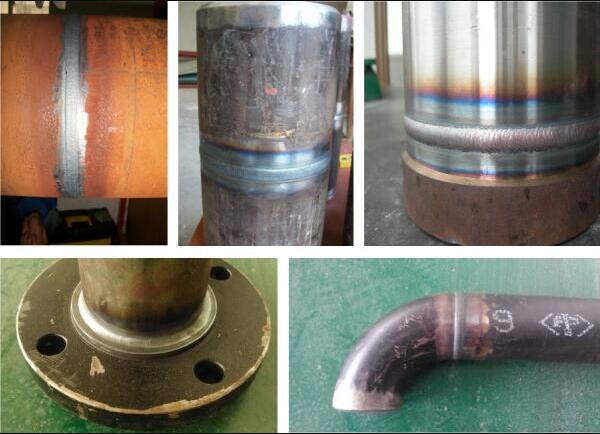

Welding Product:


Structure
How to use:
  1. Polish the nozzle clean→Open uniform and symmetrical standard groove according to the relevant process→Make sure 1mm error measurement of pipe butt joint→Spot welding in advance.
  2. Program welding procedures on control panel→Fasten machine to tube-tube to be welded(locating hood)→Press start button on remote control→Fill the chamber of machine head with argon gas→Form a stable argon gas protection environment.
  3. A stable molten pool form is formed on workpeices→ Welding torch starts rotating→When workpieces rotates 365°, welder begins reduction process→ Current decreases gradually from welding current to crater arc current→Weld seams are connected→This procedure can be controlled by inputting fall time.
Parameter
No. Item Parameters
1 Power control mode IGBT inverter control
2 Rated input voltage&range AC 200/220V ±10%(Can be changed to 3 phase, 380V)
3 Power frequency and phase no. 50/60Hz, single phase
4 Rated input volume 9.0KVA
5 Rated input power 5.9KW
6 Rated load duration 40%
7 Rated floating voltage 65V
8 Rated welding voltage 19V
9 Welding current(base current) 4~300A
10 Pulse current 4~300A
11 Starting current 4~300A
12 Crater arc current 4~300A
13 Pulse frequency 0.5~30Hz
14 Pulse duty cycle 5~95%
15 Rise time 0.0~20S
16 Fall time 0.0~20S
17 Advance air delivery time 0.0~20S
18 Lag air shutdown time 0.0~20S
19 Program storage capacity 1~100
20 Program section 1~12 sections
